• 276 ft²
  • 1 Bath

Floor Plans

Main Floor Plan

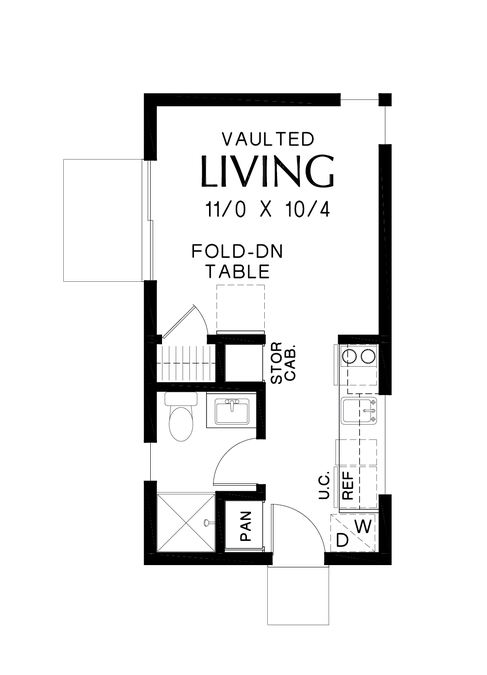

Main Floor Plan image for Mascord Moreno-Gable Roof Studio Accessory Dwelling-Main Floor Plan

Plan Details

Heated Space

  • Main Floor276 sqft

  • Total Area 276 sqft

Beds and Baths

  • Full Baths1

  • Floors1

Exterior Dimensions

  • Width12'-0"

  • Depth23'-0"

  • Height (to Midpt)10'-10"

  • Height (to Peak)12'-7"

Garage

  • Garage BaysNo Garage

  • Garage LocationNone

  • Garage OrientationNone

Notable Features

Structure

  • Roof FramingStick

  • Roof Material Shake/Comp Roof

  • Snowload25 lb/sf

  • Wall Framing2 x 6

  • Main Roof Pitch3/12

This plan is based upon design - 1181

  • Removed 46 sqft from finished area

  • Overall Width decreased 2ft.

Check out the details for Plan 1181 here.

Order this plan

Construction Plan Set
Foundations
Additional Options

Subtotal:

$

or call to order

1 (800) 411-0231

Mon-Fri: 8am-5pm PST

High-Res Mktg Images $30

Are you selling a home constructed from these plans? License the renderings and marketing floor plan images for use on MLS, on flyers or on your website. (Note: we don't offer photography licensing)

Modify This Plan

Tell us what you'd like to change, and we will prepare a quote to implement your required changes

What will it cost to build THIS house plan?

Order your custom Cost to Build Report specific to your houseplan and building lot zip code for only $30 today, and develop your construction budget before you build. Powered by StartBuild technology.

Have other questions?

If you can't find the information you need online please contact us

Call: 1 (800) 411-0231
Mon-Fri : 8am - 5pm PST
