Plan 22147A - The Kingsley - Hillside Plan with Garage Under
Floor Plans

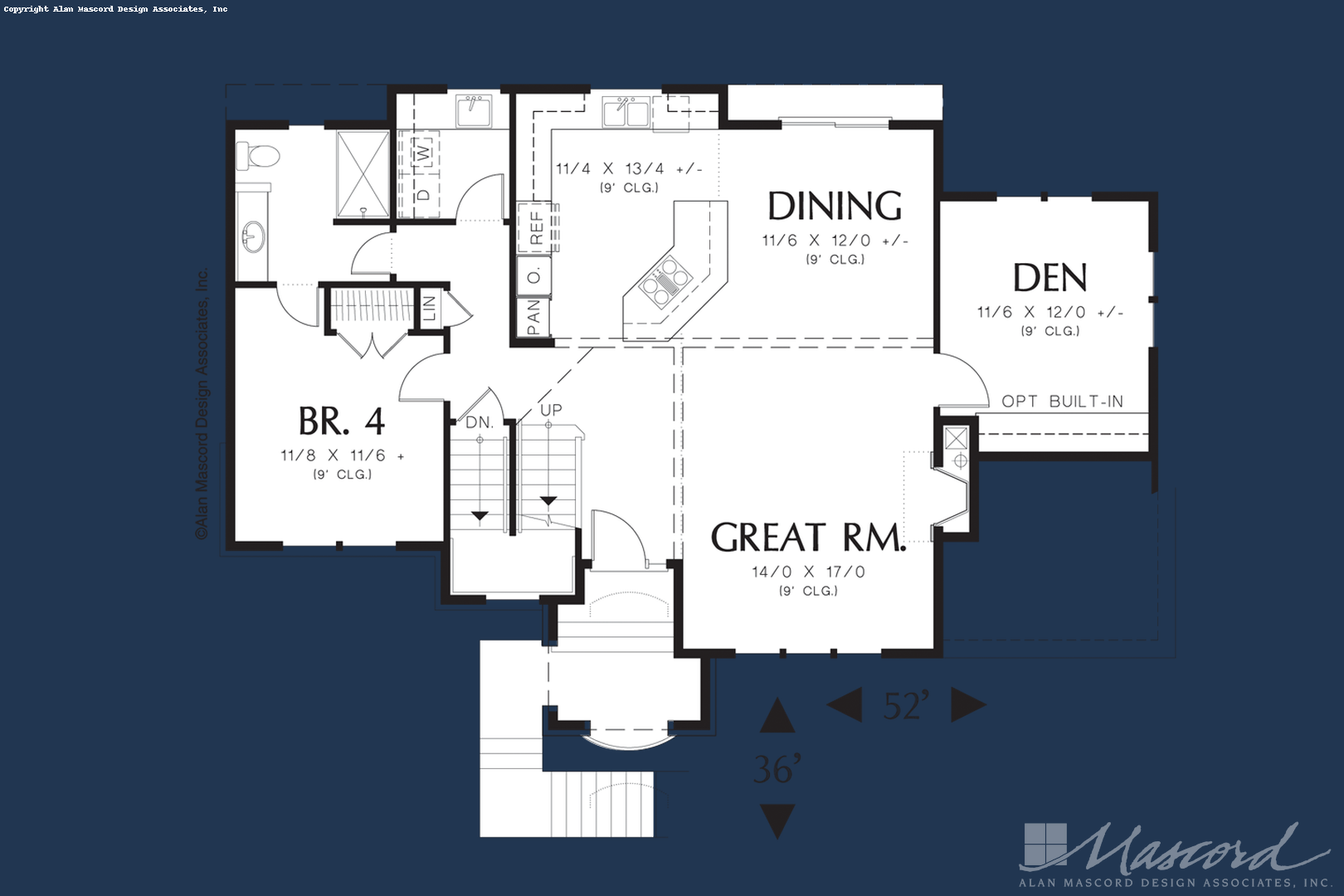

Main Floor Plan

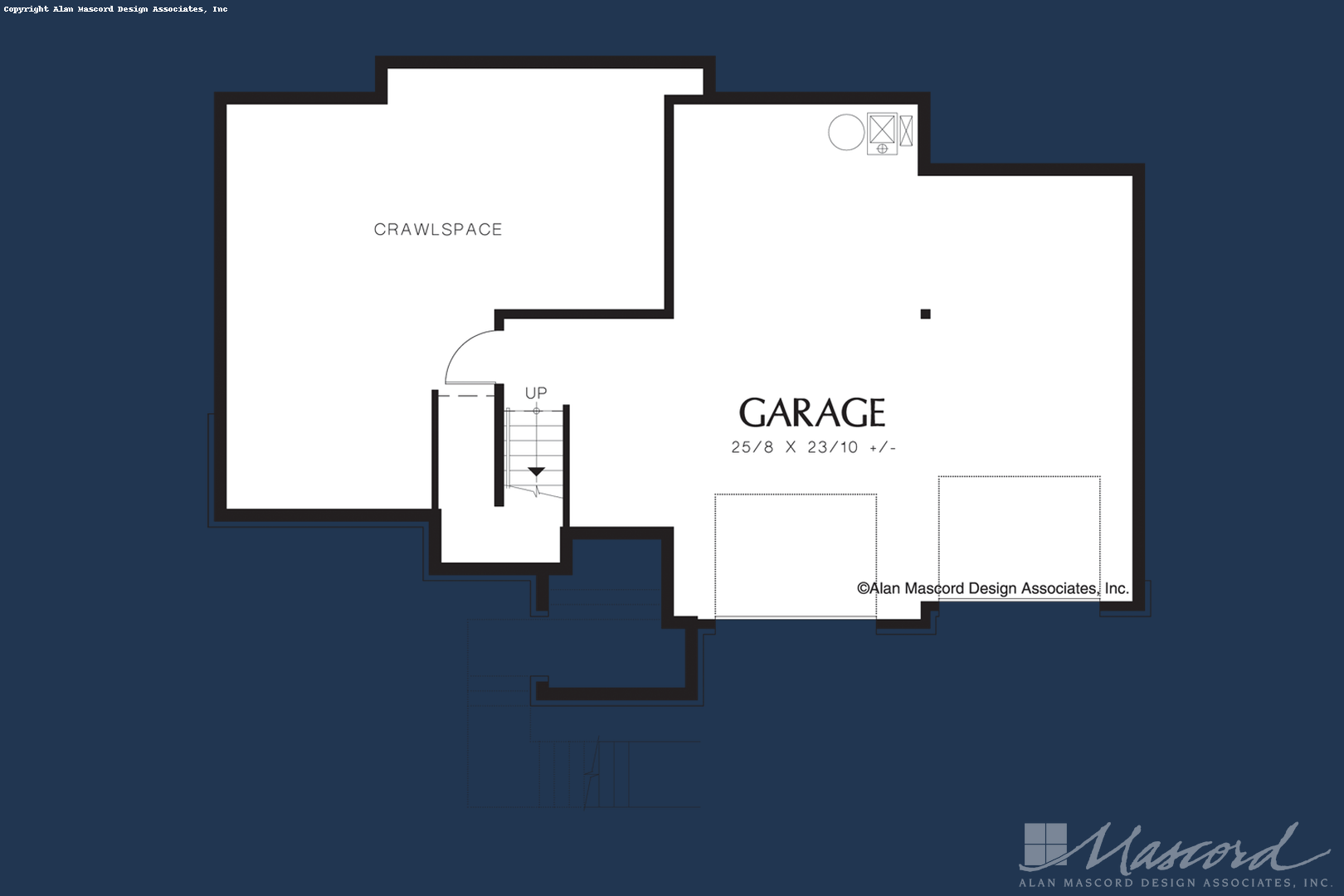

Lower Floor Plan

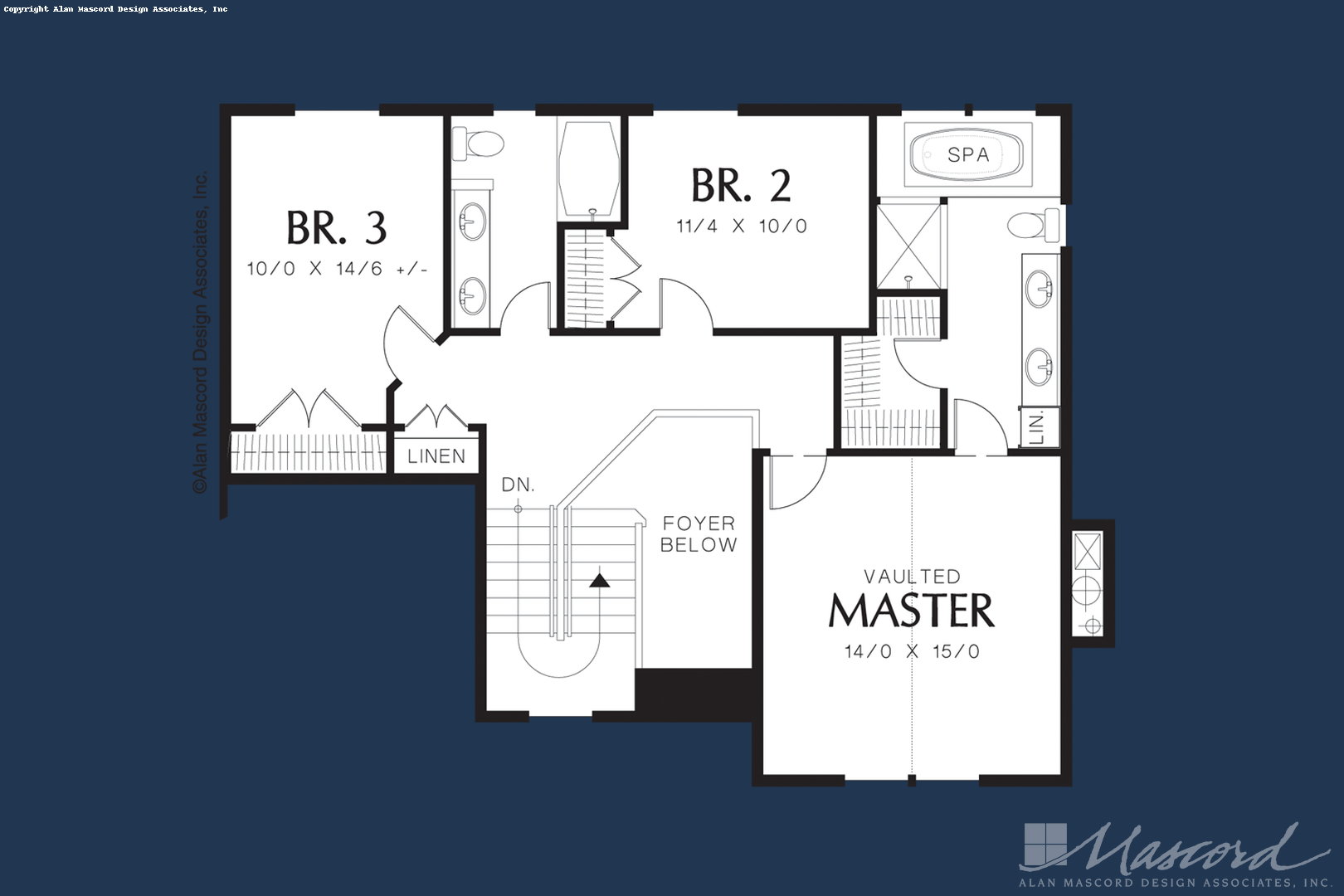

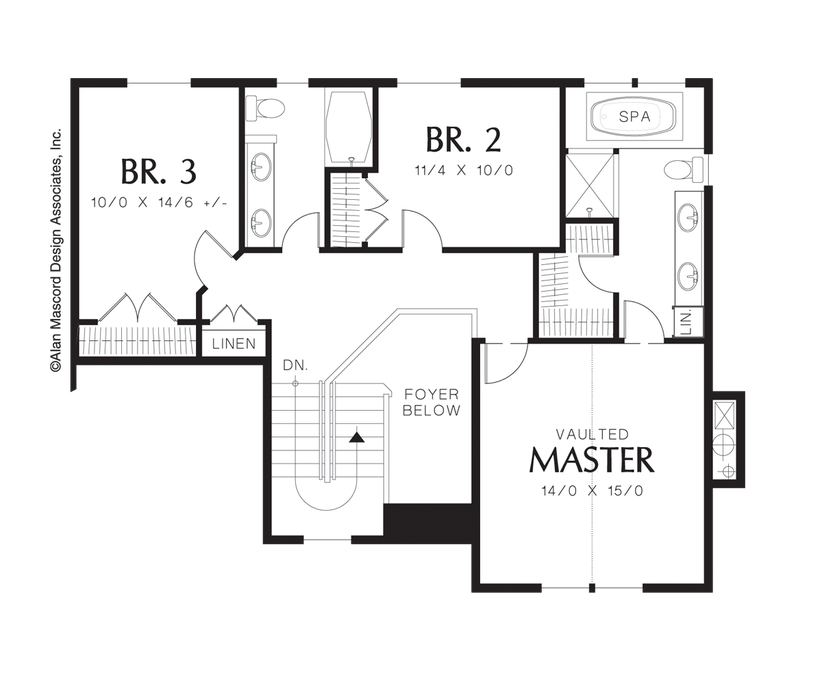

Upper Floor Plan
A Walk Through The Kingsley
Brick and lap siding work in tandem on the exterior of this hillside plan, which puts the two-car garage on the bottom level to fit the slope nicely. A small, decorative balcony adorns the entry, which also features a door with sidelight and arched transom. The great room sits at the front of the plan and is warmed by a gas fireplace. The den is on the far right. It's made more convenient by optional built-ins. The dining area and kitchen line the back of the plan and have access to the backyard via sliding glass doors in the dining area. A main-level bedroom can be reached from two directions - from the laundry room through the full bath or directly from the main hall. Upstairs there are three more bedrooms and two full baths. The master suite is especially nice with a scissor-vaulted ceiling in its salon and a bath with walk-in closet, spa tub, tiled shower and dual lavatories.
Plan Details
Heated Space
Upper Floor912 sqft
Main Floor1294 sqft
Total Area 2206 sqft
Beds and Baths
Bedrooms4
Full Baths3
Floors2
Exterior Dimensions
Width52'-0"
Depth36'-0"
Height (to Peak)30'-11"
Garage
Garage Bays2 Car Garage
Garage Area860 sqft
Garage LocationFront
Garage OrientationStraight-On
Notable Features
Structure
Roof FramingTruss
Roof Material Shake/Comp Roof
Snowload25 lb/sf
Wall Framing2 x 6
Main Roof Pitch12/12
This plan is based upon design - 22147
Removed 15 sqft from finished area
Overall Depth increased 3ft.
