• 1546 ft²
  • 3 Bed
  • 2 / 1 Bath

Floor Plans

Main Floor Plan

Main Floor Plan

Upper Floor Plan

Upper Floor Plan

Basement Floor Plan

Basement Floor Plan

A Walk Through The Ballard

This super plan is the perfect choice for a narrow building lot and gives up nothing in the way of comfortable living. The exterior is enchanting, with a covered porch, stone balustrade supports and cedar shake siding on the upper facade. A vaulted great room and open dining area line the front of the floor plan, with an open-rail staircase in the middle across from the L-shaped kitchen. A private study at the rear has the use of a powder room. The one-car garage faces to the back and is part of the overall 24-foot width. Bedrooms are on the upper level. A vaulted master salon has an attached bath with double sinks, walk-in closet, and compartmented toilet and shower. Bedrooms 2 and 3 share a full hall bath. The laundry room is also on the second floor--close to bedrooms for convenience.

Plan Details

Heated Space

  • Upper Floor786 sqft

  • Main Floor760 sqft

  • Total Area 1546 sqft

  • Bsmnt (Unfin.)+ 771 sqft

Beds and Baths

  • Bedrooms3

  • Full Baths2

  • Half Baths1

  • Floors2

Exterior Dimensions

  • Width24'-0"

  • Depth48'-0"

  • Height (to Midpt)22'-3"

  • Height (to Peak)26'-8"

Garage

  • Garage Bays1 Car Garage

  • Garage Area273 sqft

  • Garage LocationRear

  • Garage OrientationStraight-On

Notable Features

Structure

  • Roof FramingTruss

  • Roof Material Shake/Comp Roof

  • Snowload25 lb/sf

  • Wall Framing2 x 6

  • Main Roof Pitch7/12

This plan is based upon design - 2157L

  • Removed 2 sqft from finished area

Check out the details for Plan 2157L here.
In-Ground Basement
for Plan 2157L

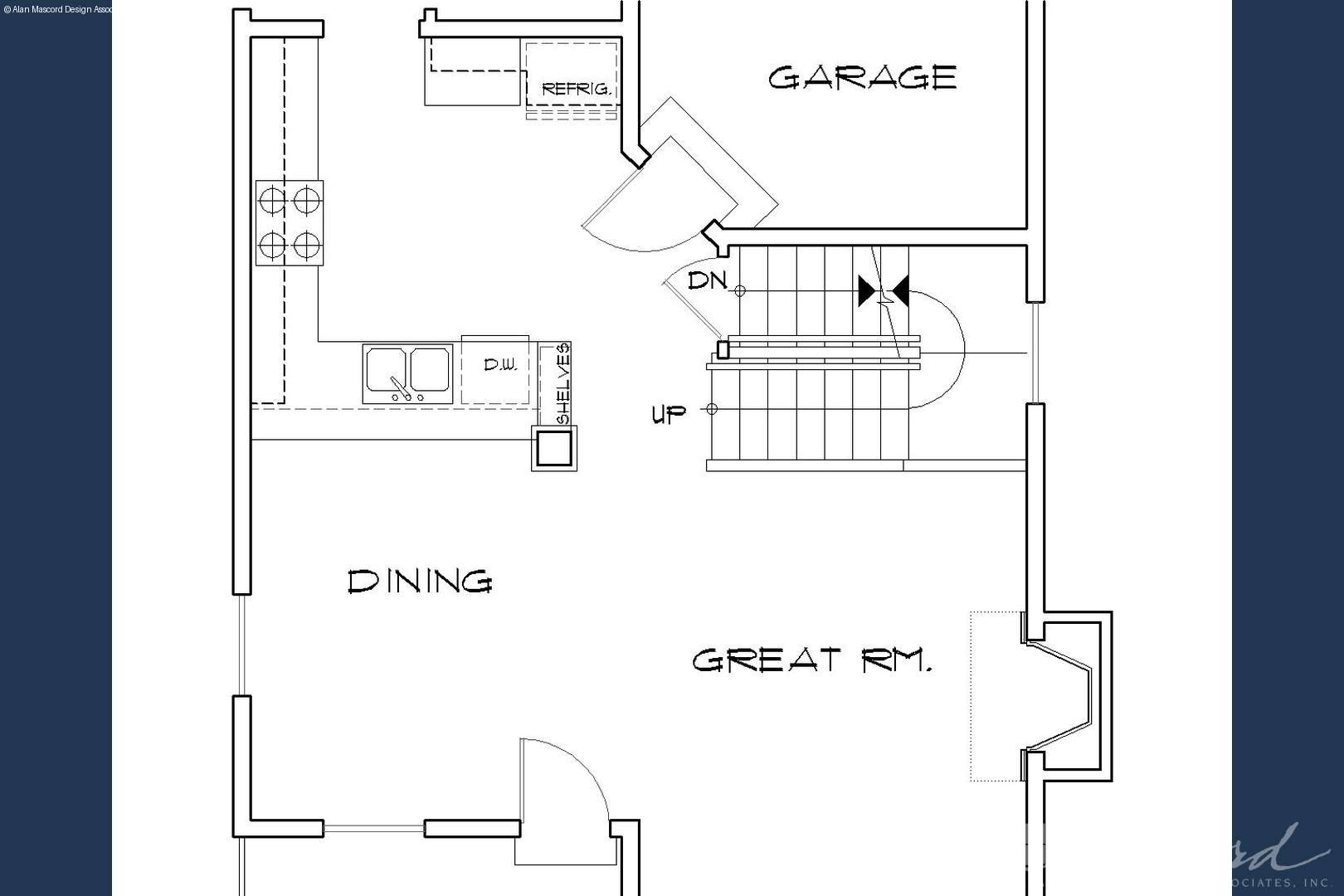

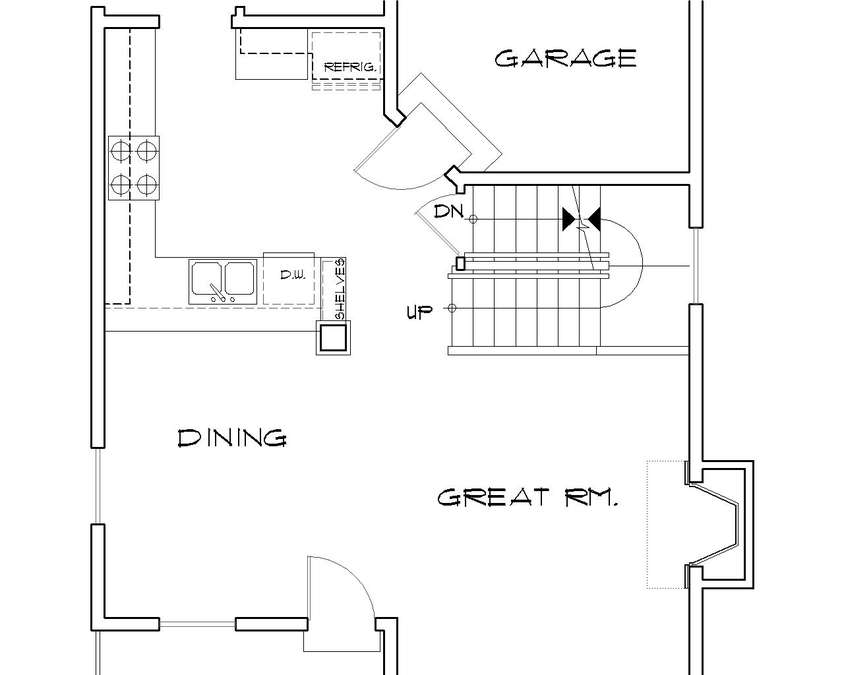

To order this configuration, choose 'In-Ground Basement' from available foundation options on the page for Plan 2157L
