• 2730 ft²
  • 4 Bed
  • 3 Bath

Floor Plans

Main Floor Plan

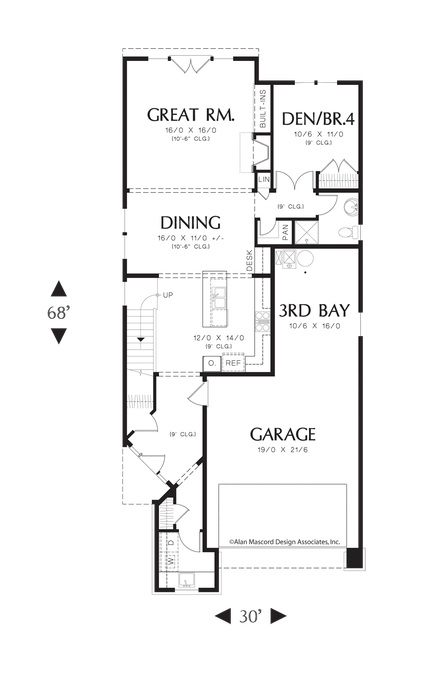

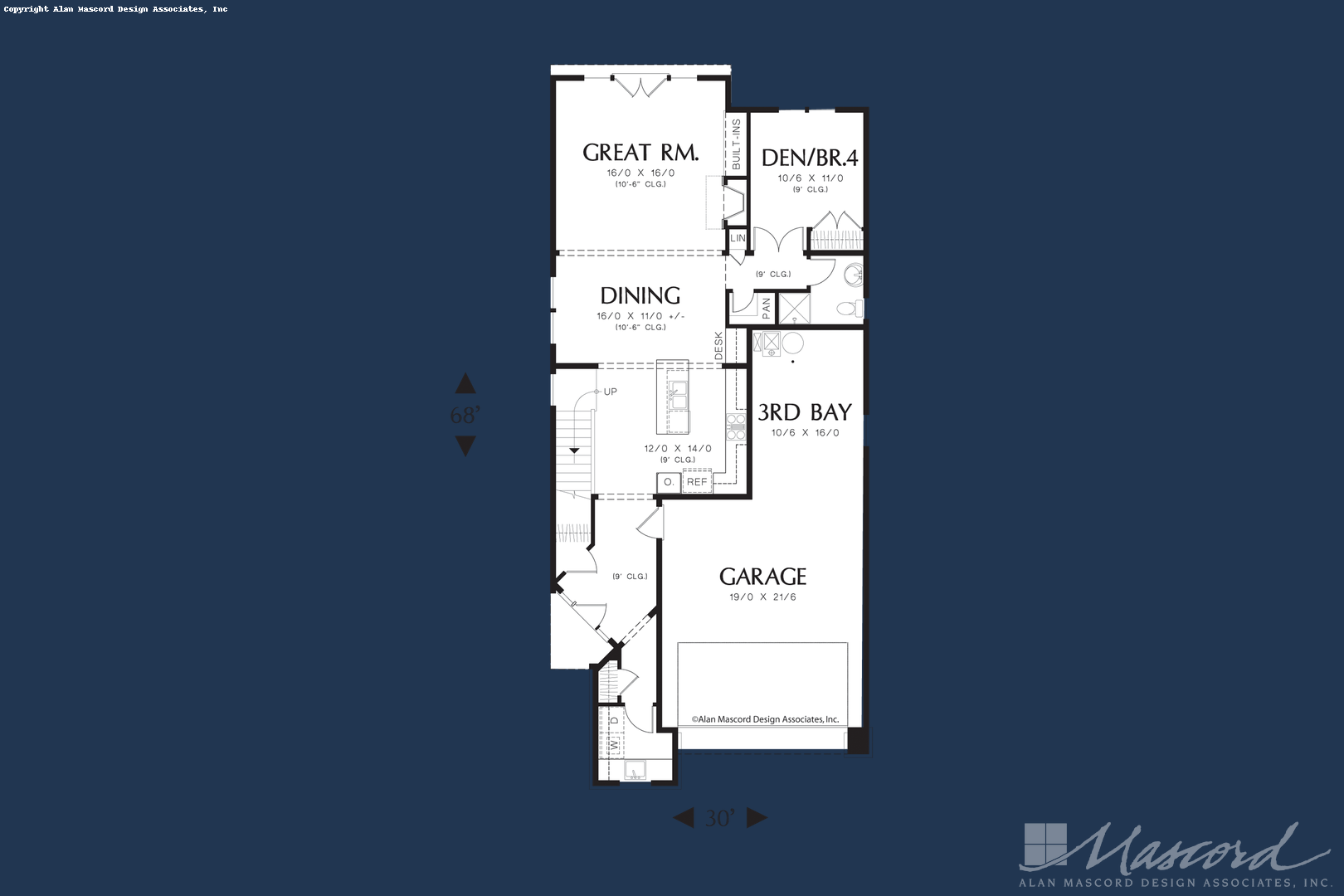

Main Floor Plan image for Mascord Penrod-New England Style Narrow Lot Plan-Main Floor Plan

Upper Floor Plan

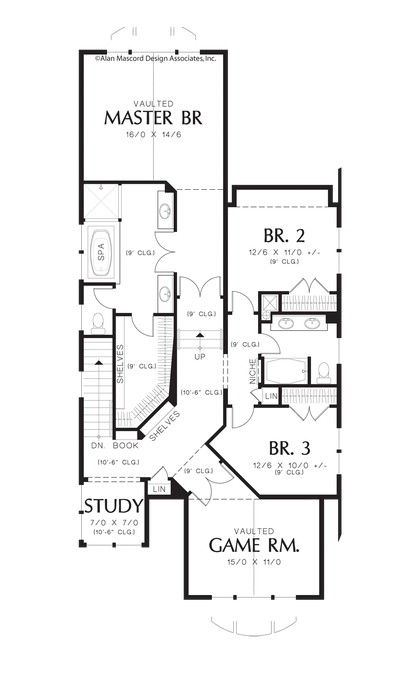

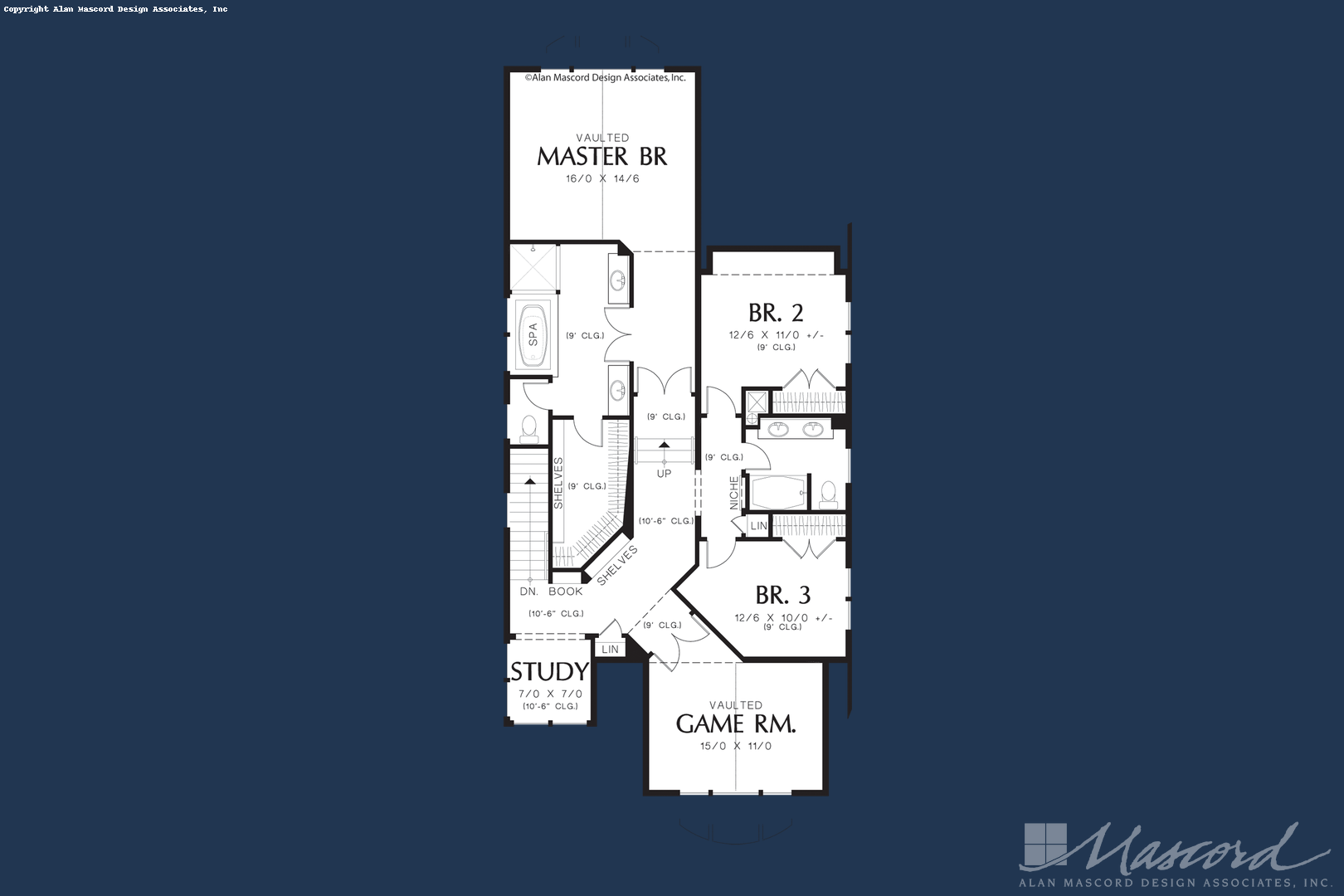

Upper Floor Plan image for Mascord Penrod-New England Style Narrow Lot Plan-Upper Floor Plan

A Walk Through The Penrod

You may be surprised at the amount of living space packed into this narrow-lot home plan. You'll sacrifice little, as the floor plan offers a study, a game room, a three-car garage, plus the option of a fourth bedroom. The Shingle style exterior, with its brackets, arched windows, and decorative bracing emanates the charm of coastal New England homes. The angled entrance wastes no time in connecting to the kitchen and living areas. Yet, if needed, an alcove off the entry accesses a coat closet and the laundry room. Dining is relegated to the kitchen island snack bar or the neighboring dining room with side view. Inextricably combined with the kitchen, the dining room provides space for a planning desk and leads to a walk-in pantry around the corner in the hallway. The great room gathers guests and family around its fireplace, built-in media center and wall of windows that view the backyard. The main-level also includes a full bath and a den, which can be used as a bedroom. The garage features a tandem third stall. The upper-level caters to family members' needs. For the children, a sunny study alcove will be a quiet place to do homework, while the game room is ideal for use as a playroom or teenager hang-out. For the adults, the master bedroom features a gorgeous backyard view and includes individual vanities, a spa tub, and a spacious walk-in closet with built-in shelves.

Plan Details

Heated Space

  • Upper Floor1525 sqft

  • Main Floor1205 sqft

  • Total Area 2730 sqft

Beds and Baths

  • Bedrooms4

  • Full Baths3

  • Floors2

Exterior Dimensions

  • Width30'-0"

  • Depth68'-0"

  • Height (to Midpt)26'-8"

  • Height (to Peak)32'-6"

Garage

  • Garage Bays3 Car Tandem Garage

  • Garage Area604 sqft

  • Garage LocationFront

  • Garage OrientationStraight-On

Structure

  • Roof FramingTruss

  • Roof Material Shake/Comp Roof
    Tile Roof

  • Snowload25 lb/sf

  • Wall Framing2 x 6

  • Main Roof Pitch9/12
