• 2874 ft²
  • 4 Bed
  • 3 / 1 Bath

Floor Plans

Main Floor Plan

Main Floor Plan image for Mascord Augustine-Contemporary Upslope plan with 2 Cars and Guest Suite-Main Floor Plan

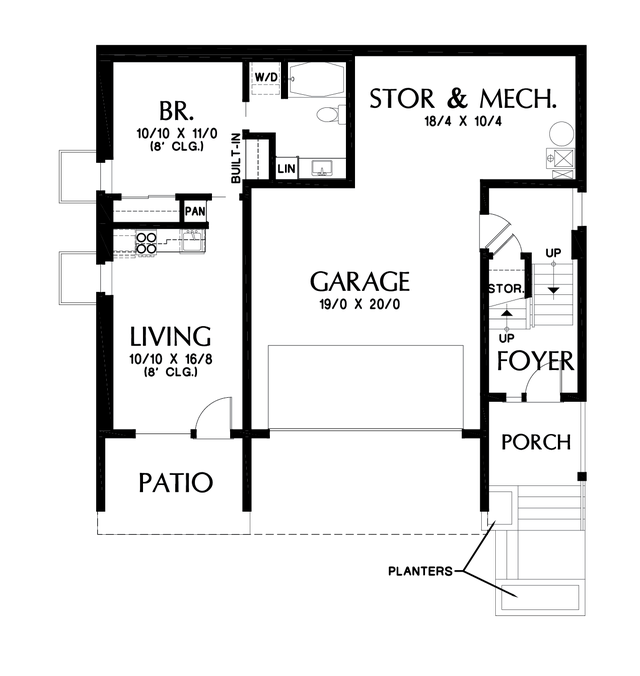

Lower Floor Plan

Lower Floor Plan image for Mascord Augustine-Contemporary Upslope plan with 2 Cars and Guest Suite-Lower Floor Plan

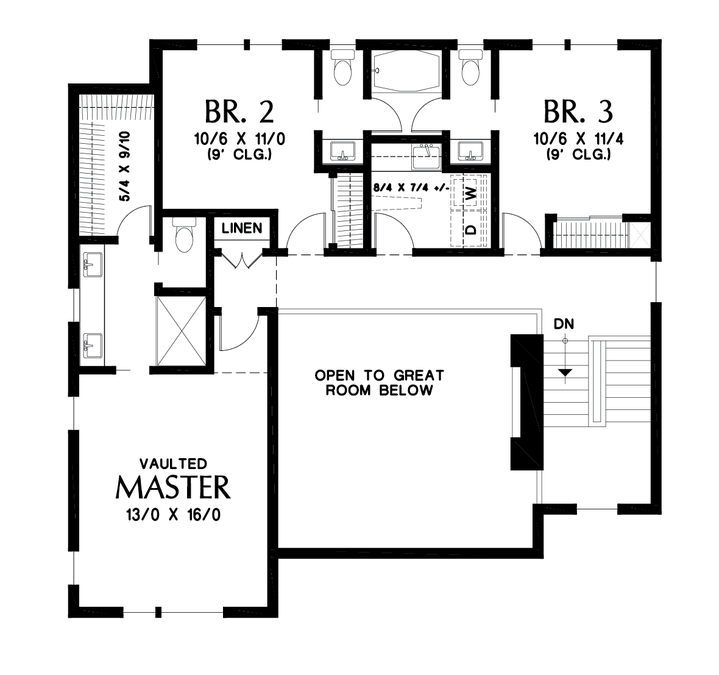

Upper Floor Plan

Upper Floor Plan image for Mascord Augustine-Contemporary Upslope plan with 2 Cars and Guest Suite-Upper Floor Plan

A Walk Through The Augustine

Modern lifestyles require imaginative homes that blend both form and function into something that suits the unique aspects of your family. That is exactly what the Augustine gives you. On the outside, this home is all contemporary, with beautiful geometry that works beautifully with mixed siding materials in your choice of shades. Step inside, however, and you’ll find a variety of amenities mixed with comfortable living spaces.

The Augustine’s main floor features the kitchen, dining area, great room and the home’s office. The office is the perfect place to pursue a work-at-home career. Whether you’re a writer, designer or in another line of work, you’ll find the built-in cabinets useful for storing all of your business’s needs, and with that, there is plenty of space here for the desk of your dreams.

The kitchen features an L-shaped design that gives you miles of counter space plus an eat-in island where the kids will enjoy breakfasts and lunches. Between the dining room and great room, you’ll have all the space you’ll need to host holiday gatherings or to kick back and unwind after a long day at work. Here, a fireplace will keep you toasty in the winter, and a deck accessible from both the dining area and great room gives you the perfect outdoor spot to relax in the summer.

In the Augustine, the upper floor is designed for comfort. Two bedrooms give the kids plenty of play space, and the bathroom between them features a unique structure. The bath itself is private, and to either side are a sink and toilet, one to each bedroom. This means that your kids will have their own private, organized space to get ready in the morning. The master suite features a vaulted ceiling that gives it a lofty, open feel. His-and-hers sinks in the bath will make your morning routine simple, and the walk-in closet keeps your wardrobe conveniently close at hand. The laundry room is on this floor, too, and that’s an added bonus since that means once the laundry is done, you’ll only be a few steps away from each of the bedroom’s closets to put it away.

The Augustine’s lower level is one of the things that makes this home so unique. There is garage and storage space down here, but apart from that, there is also a small apartment that gives you lots of options. This space if fully featured with its own living room, kitchenette, bedroom, bathroom and even space for a small washer and dryer. It’s perfect if you have aging parents who need a place to stay, or if you have a grown child who isn’t quite ready to leave the nest yet. This also makes a sumptuous space for overnight guests, or you could sublet it if you so desired.

Plan Details

Heated Space

  • Upper Floor1019 sqft

  • Main Floor1256 sqft

  • Basement599 sqft

  • Total Area 2874 sqft

Beds and Baths

  • Bedrooms4

  • Full Baths3

  • Half Baths1

  • Floors2

Exterior Dimensions

  • Width40'-0"

  • Depth43'-0"

  • Height (to Midpt)21'-6"

  • Height (to Peak)25'-4"

Garage

  • Garage Bays2 Car Garage

  • Garage Area586 sqft

  • Garage LocationFront

  • Garage OrientationStraight-On

Structure

  • Roof FramingStick

  • Roof Material Metal/Standing Seam Roof

  • Snowload25 lb/sf

  • Wall Framing2 x 6

  • Main Roof Pitch3/12

This plan is based upon design - 22216

  • Added 437 sqft to finished area

  • Added a bedroom.

  • Added a bathroom.

Check out the details for Plan 22216 here.

Order this plan

Construction Plan Set
Foundations
Additional Options

Subtotal:

$

or call to order

1 (800) 411-0231

Mon-Fri: 8am-5pm PST

High-Res Mktg Images $30

Are you selling a home constructed from these plans? License the renderings and marketing floor plan images for use on MLS, on flyers or on your website. (Note: we don't offer photography licensing)

Modify This Plan

Tell us what you'd like to change, and we will prepare a quote to implement your required changes

What will it cost to build THIS house plan?

Order your custom Cost to Build Report specific to your houseplan and building lot zip code for only $30 today, and develop your construction budget before you build. Powered by StartBuild technology.

Have other questions?

If you can't find the information you need online please contact us

Call: 1 (800) 411-0231
Mon-Fri : 8am - 5pm PST

Contemporary

Our Contemporary House Plans collection presents modern homes designed around light and space: open, airy and with an abundance of windows in various modern styles, these homes are generously appointed to bring ample light indoors. Unique rooflines and asymmetrical designs create rooms that feel as grand as they are innovative. With a focus on maximizing square footage and minimizing costs, these pioneering modern homes are as reasonable to build as they are pleasant to live in, which we're sure you'll love.

Mountain Modern

Mountain modern architectural style homes are inspired by the natural beauty of mountainous regions and are designed to blend in with their surroundings. These homes are often located in ski resorts, mountain towns, or other natural settings and are designed to take advantage of the views. They are characterized by their use of natural materials, such as wood, stone, and glass, and may have large windows or outdoor living spaces to bring the outdoors in. Mountain modern homes may have a contemporary or traditional aesthetic, and may incorporate elements such as steep pitched roofs, exposed beams, and stone or wood exteriors. The interiors of these homes often feature a comfortable, welcoming atmosphere, with an emphasis on natural materials and a connection to the surrounding landscape. Mountain modern architecture aims to create a harmonious relationship between the built environment and the natural surroundings.

Similar & Related Plans

You can find this plan in these related styles and collections

Why you should buy your Mascord plan directly from us

We are the designers of every home displayed and available on this website. Though you may sometimes find our home plans advertised and for sale elsewhere both online and in print, it makes sense to purchase your plan directly. Place your order confidently knowing your home plans come from the original source, and that you have the support of the designer of your home.

As the original designer and copyright owner - we can beat any lower price you find a Mascord plan for sale - on any website authorized to sell our plans. Before you make your purchase, simply give us a call, direct us to the site you have seen the lower advertised price, and we'll not only match that price - we'll also give you a further 5% discount and extra special customer care :-). (The advertised plan must be the same as the plan being purchased, including product type - 5 Set, 8 Set, Hybrid, Reproducible, or CAD File, etc). Our standard price-beating guarantee refers to regularly listed prices, but if you find any coupon, special offer, bonus offer, freebies or rebate offered on a competing website, call us, tell us where it is, and we'll see if we can beat that too!

If you have questions about an element in the design, or your contractor has a question during construction - we are able to answer those questions for you quickly and accurately, without the need for you to go through a third party.

We support all of the plans we sell, and by purchasing direct, you're able to take advantage of the high level of customer service we provide.

To return or exchange your home plans, simply call customer service at (503) 225-9161 within 14 days of purchase for information on how to return your unused printed plans to us. Unused plans should not be marked on, defaced, or copied. Packages that include electronically delivered house plans - packages that include PDF and CAD files - are non-refundable and non-exchangeable. All paper plan exchanges are subject to a 20% restocking fee to cover printing and shipping costs.

Will This Design Work For Your Location?

The base code requires that the design of your structure meet certain requirements. The code allows for a couple of ways to meet these requirements. The first method is known as "prescriptive" wall bracing, and is built into the code as prescribed building elements that must be included at specified positions of the building. Prescriptive methods are acceptable as long as the structure's design fits within certain limitations (wall height, window size/location, etc.). The second method is to demonstrate, by engineering analysis, the forces imposed upon the structure, and the design of structural elements to withstand those forces. Whereas the prescriptive method imposes certain limitations on the design of the structure, the engineering analysis of the building allows for greater flexibility in the design, while ensuring it can withstand the actual natural forces the structure will experience.

In almost all cases, Mascord designs will require site specific engineering analysis. This analysis is required to be conducted by a professional, such as a structural engineer, who is licensed by the state in which the structure will be built. The analysis is specific to the exact building site - for this reason, we do not have "pre-engineered" plans that can be built anywhere. An engineer will need to review the plans and provide an engineering analysis report and additional drawings and specifications to go along with your plans for permit submittal. You should allow for additional time and expense to complete this process.

Some regions have additional engineering requirements, such as earthquake-prone areas of California and the Pacific Northwest, or the Gulf, Florida, & Carolina coasts that are frequented by hurricanes. Additional Wind and Seismic engineering drawings are required to accompany your home plans to obtain a building permit in most areas. These additional drawings need to be provided and stamped by a professional licensed in your state. In most cases we have working relationships established with engineers who can help you obtain the necessary drawings cost effectively, or you are welcome to source your own local engineer.

When the design includes retaining walls, these will also require engineering. Although the code provides for some prescriptive basement and concrete/masonry wall designs, these only work in limited situations. The use of site-engineered retaining walls allows for much greater design flexibility and ensures that the walls are designed specifically for the design loads, unique soils, fluid pressures, and drainage characteristics at the building site. It makes little sense to place the most expensive investment a family typically makes onto a foundation that is not designed for the unique characteristics of the land on which it is set.

All Mascord house plans are designed and detailed to conform to The International Residential Code (for orders out of state), or Oregon and Washington local state codes (for orders in those states).

Your area may have also have specific energy codes that have to be followed. Compliance could include filling out forms providing evidence that your construction drawings meet requirements. In many cases the forms are simple and can be filled out by yourself, or with the aid of your General Contractor.

To find out exactly what drawing details you should expect with your Mascord house plans, see "What's included in a Plan Set?"

If you aren’t sure what may be required, contact your building department and ask for a list of all of the items they require to submit for and obtain a building permit.

We typically calculate and provide sizing of beams for a snowload of 25 psf. You may need beams sized to accommodate larger roof loads specific to your region. We are able to help with this; please speak with our sales staff to discuss your options.

Building jurisdictions in several states - including California, New York, New Jersey, Nevada and Illinois - require that your home design is reviewed and your entire set of construction drawings is stamped by a local professional. If you are building in such an area, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your local building department.

In addition to the construction drawings, you may also need a site plan that shows where the house is going to be located on your chosen property, along with any grading and water management / septic system requirements.

Although we make every effort to ensure the accuracy of our design information, we reserve the right to make corrections on our floor plans or elevations as needed.
