In-Ground Basement
for Plan 22189
for Plan 22189
To order this configuration, choose 'In-Ground Basement' from available foundation options on the page for Plan 22189
Plan 22189 - Basement Details
- 2400 (+491 Bonus) ft²
- 4 Bed
- 3 / 1 Bath
Floor Plans
Main Floor Plan
Upper Floor Plan
Basement Floor Plan
Embodying the elegance and charm of historical plantation homes, the Madewood is a great family home that can add character to any modern neighborhood. This Southern Colonial Style home combines architectural components from Colonial, Country, European, and Traditional house plans to create a classically beautiful home that also reflects and accommodates modern lifestyles. These spacious and inviting house plans include four bedrooms, three full bathrooms, one half bathroom, lots of storage space, and other great indoor and outdoor features.

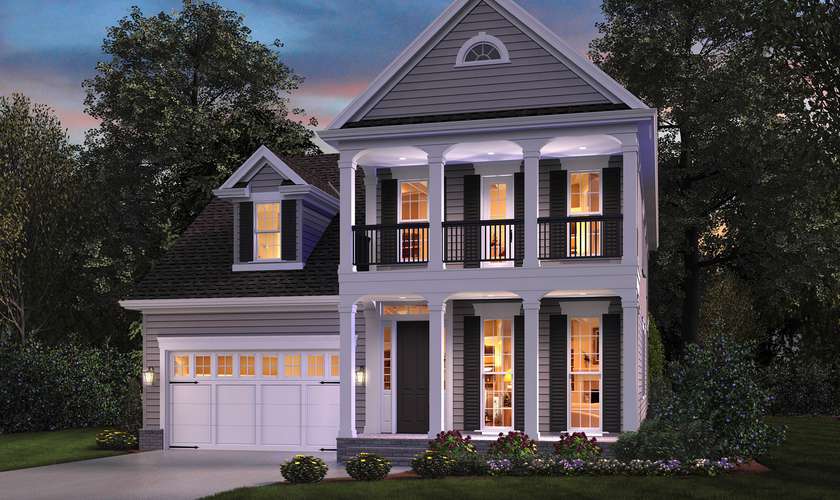

As you walk up towards this home, you will notice the fantastic façade featuring tall shutters and columns and a lovely front porch, all of which contribute to the majestic yet inviting atmosphere of this house. When you enter the front door, you will be greeted by a staircase that runs up to the second story of the home. To the right of the front entrance is the study which looks out onto the front porch and serves as a pleasant office or library space. As you continue down the main floor corridor, a common feature in southern house plans, you will find the formal dining room which then opens up into the great room and kitchen. The ample great room comes equipped with a built-in media space and connects to the back porch, so you can take your small gatherings or large festivities outside, weather permitting. The kitchen comes with an island, walk-in pantry, and cozy little nook that looks out into the backyard and is perfect for intimate family meals. Just beyond the kitchen is one of the four bedrooms, with its own full bathroom and closet space.

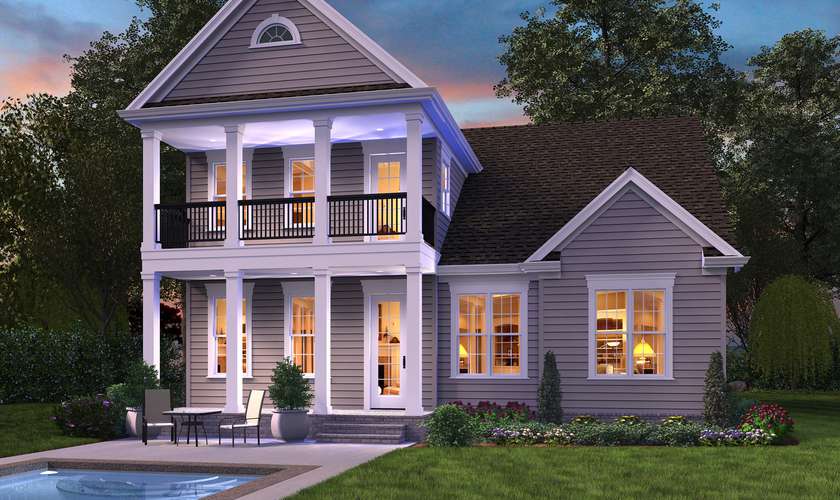

Heading back towards the staircase, and going on up to the second floor, you will notice a large room to the left. This room can serve as a guest suite, more office space, another bedroom or family room, a game room, a utility room, the possibilities are endless. At the end of the hall is the master bedroom, which not only has a large walk-in closet and bathroom that comes with a spa bath, but also opens out onto its own private covered deck. The remaining two bedrooms are located next to the master bedroom and each have their own closet space and share the third full bathroom. The bedroom located at the opposite end of the hall to the master bedroom also has access to its own covered deck that looks out towards the street. Heading back downstairs, you can take a right into the two car garage, which not only has plenty of storage space, but its own counter, freezer/refrigerator space, and outdoor sink.
Plan Details
Heated Space
Upper Floor967 sqft
Main Floor1433 sqft
Sub-Total 2400 sqft
Bonus+ 491 sqft
Bsmnt (Unfin.)+ 1318 sqft
Beds and Baths
Bedrooms4
Full Baths3
Half Baths1
Floors2
Exterior Dimensions
Width40'-0"
Depth61'-0"
Height (to Midpt)21'-11"
Height (to Peak)29'-6"
Garage
Garage Bays2 Car Garage
Garage Area480 sqft
Garage LocationFront
Garage OrientationStraight-On
Notable Features
Structure
Roof FramingTruss
Roof Material Shake/Comp Roof
Snowload25 lb/sf
Wall Framing2 x 6
Main Roof Pitch10/12
Have other questions?
If you can't find the information you need online please contact us
Call: 1 (800) 411-0231
Mon-Fri : 8am - 5pm PST
Colonial
This is a colonial style home. Our Colonial home designs typically have an accentuated front door (usually centered), perhaps with a decorative crown and supported by pillasters or extended forward and supported by slender columns to form an entry porch. Doors commonly have overhead fan lights or sidelights. The facade normally shows symmetrically balanced windows. The foot print of the home is typically a simple, rectangular shape.
European
Some of the features of this home are 'European'. European homes come in many guises, since the term reflects homes styled after those in many countries; English Tudor, French Country, and Dutch Gable, to name a few. Beyond the country of origin, there's also the period of history from which the style emerged; Georgian, Victorian, Greek Revival; the list is almost endless. The homes shown in the collection below feature elements inspired by those found in countries across the Atlantic.
Traditional
Traditional homes freely borrow from a number of historic styles and combine them to relay a new expression. Many historic styles are also 'traditional' in nature, and are incorporated into the Mascord Collection. Colonial, Tudor, Craftsman, Cape Cod - in this collection of home plans you'll discover floor plans that reflect modern lifestyles with spacious rooms, flexible spaces and modern conveniences, but mixed with distinct architectural flair, curb appeal and modern aesthetic. Expect elements such as free-flowing kitchens, breakfast nooks, and family room combinations.
Similar & Related Plans
The Madewood 22189
Old Southern Charm with New Age Convenience
- 4
- 3
- 2400 ft²
- Width: 40'-0"
- Depth: 61'-0"
- Height (Mid): 24'-11"
- Height (Peak): 29'-6"
- Stories (above grade): 2
- Main Pitch: 10/12
You can find this plan in these related styles and collections
Why you should buy your Mascord plan directly from us
We are the designers of every home displayed and available on this website. Though you may sometimes find our home plans advertised and for sale elsewhere both online and in print, it makes sense to purchase your plan directly. Place your order confidently knowing your home plans come from the original source, and that you have the support of the designer of your home.
As the original designer and copyright owner - we can beat any lower price you find a Mascord plan for sale - on any website authorized to sell our plans. Before you make your purchase, simply give us a call, direct us to the site you have seen the lower advertised price, and we'll not only match that price - we'll also give you a further 5% discount and extra special customer care :-). (The advertised plan must be the same as the plan being purchased, including product type - 5 Set, 8 Set, Hybrid, Reproducible, or CAD File, etc). Our standard price-beating guarantee refers to regularly listed prices, but if you find any coupon, special offer, bonus offer, freebies or rebate offered on a competing website, call us, tell us where it is, and we'll see if we can beat that too!
If you have questions about an element in the design, or your contractor has a question during construction - we are able to answer those questions for you quickly and accurately, without the need for you to go through a third party.
We support all of the plans we sell, and by purchasing direct, you're able to take advantage of the high level of customer service we provide.
To return or exchange your home plans, simply call customer service at (503) 225-9161 within 14 days of purchase for information on how to return your unused printed plans to us. Unused plans should not be marked on, defaced, or copied. Packages that include electronically delivered house plans - packages that include PDF and CAD files - are non-refundable and non-exchangeable. All paper plan exchanges are subject to a 20% restocking fee to cover printing and shipping costs.
Will This Design Work For Your Location?
The base code requires that the design of your structure meet certain requirements. The code allows for a couple of ways to meet these requirements. The first method is known as "prescriptive" wall bracing, and is built into the code as prescribed building elements that must be included at specified positions of the building. Prescriptive methods are acceptable as long as the structure's design fits within certain limitations (wall height, window size/location, etc.). The second method is to demonstrate, by engineering analysis, the forces imposed upon the structure, and the design of structural elements to withstand those forces. Whereas the prescriptive method imposes certain limitations on the design of the structure, the engineering analysis of the building allows for greater flexibility in the design, while ensuring it can withstand the actual natural forces the structure will experience.
In almost all cases, Mascord designs will require site specific engineering analysis. This analysis is required to be conducted by a professional, such as a structural engineer, who is licensed by the state in which the structure will be built. The analysis is specific to the exact building site - for this reason, we do not have "pre-engineered" plans that can be built anywhere. An engineer will need to review the plans and provide an engineering analysis report and additional drawings and specifications to go along with your plans for permit submittal. You should allow for additional time and expense to complete this process.
Some regions have additional engineering requirements, such as earthquake-prone areas of California and the Pacific Northwest, or the Gulf, Florida, & Carolina coasts that are frequented by hurricanes. Additional Wind and Seismic engineering drawings are required to accompany your home plans to obtain a building permit in most areas. These additional drawings need to be provided and stamped by a professional licensed in your state. In most cases we have working relationships established with engineers who can help you obtain the necessary drawings cost effectively, or you are welcome to source your own local engineer.
When the design includes retaining walls, these will also require engineering. Although the code provides for some prescriptive basement and concrete/masonry wall designs, these only work in limited situations. The use of site-engineered retaining walls allows for much greater design flexibility and ensures that the walls are designed specifically for the design loads, unique soils, fluid pressures, and drainage characteristics at the building site. It makes little sense to place the most expensive investment a family typically makes onto a foundation that is not designed for the unique characteristics of the land on which it is set.
All Mascord house plans are designed and detailed to conform to The International Residential Code (for orders out of state), or Oregon and Washington local state codes (for orders in those states).
Your area may have also have specific energy codes that have to be followed. Compliance could include filling out forms providing evidence that your construction drawings meet requirements. In many cases the forms are simple and can be filled out by yourself, or with the aid of your General Contractor.
To find out exactly what drawing details you should expect with your Mascord house plans, see "What's included in a Plan Set?"
If you aren’t sure what may be required, contact your building department and ask for a list of all of the items they require to submit for and obtain a building permit.
We typically calculate and provide sizing of beams for a snowload of 25 psf. You may need beams sized to accommodate larger roof loads specific to your region. We are able to help with this; please speak with our sales staff to discuss your options.
Building jurisdictions in several states - including California, New York, New Jersey, Nevada and Illinois - require that your home design is reviewed and your entire set of construction drawings is stamped by a local professional. If you are building in such an area, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your local building department.
In addition to the construction drawings, you may also need a site plan that shows where the house is going to be located on your chosen property, along with any grading and water management / septic system requirements.
Although we make every effort to ensure the accuracy of our design information, we reserve the right to make corrections on our floor plans or elevations as needed.
