• 3351 ft²
  • 5 Bed
  • 4 / 1 Bath

Floor Plans

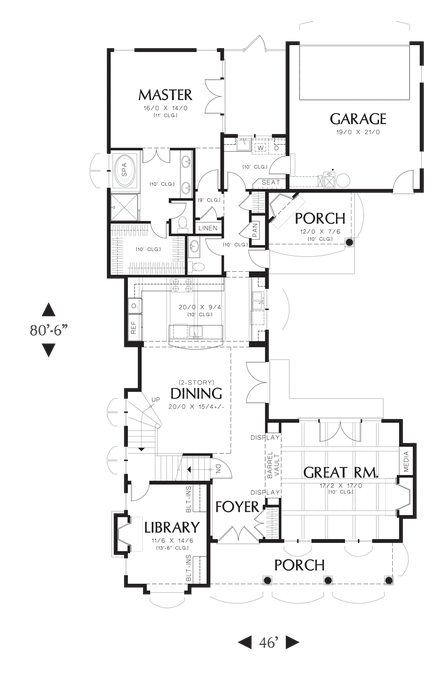

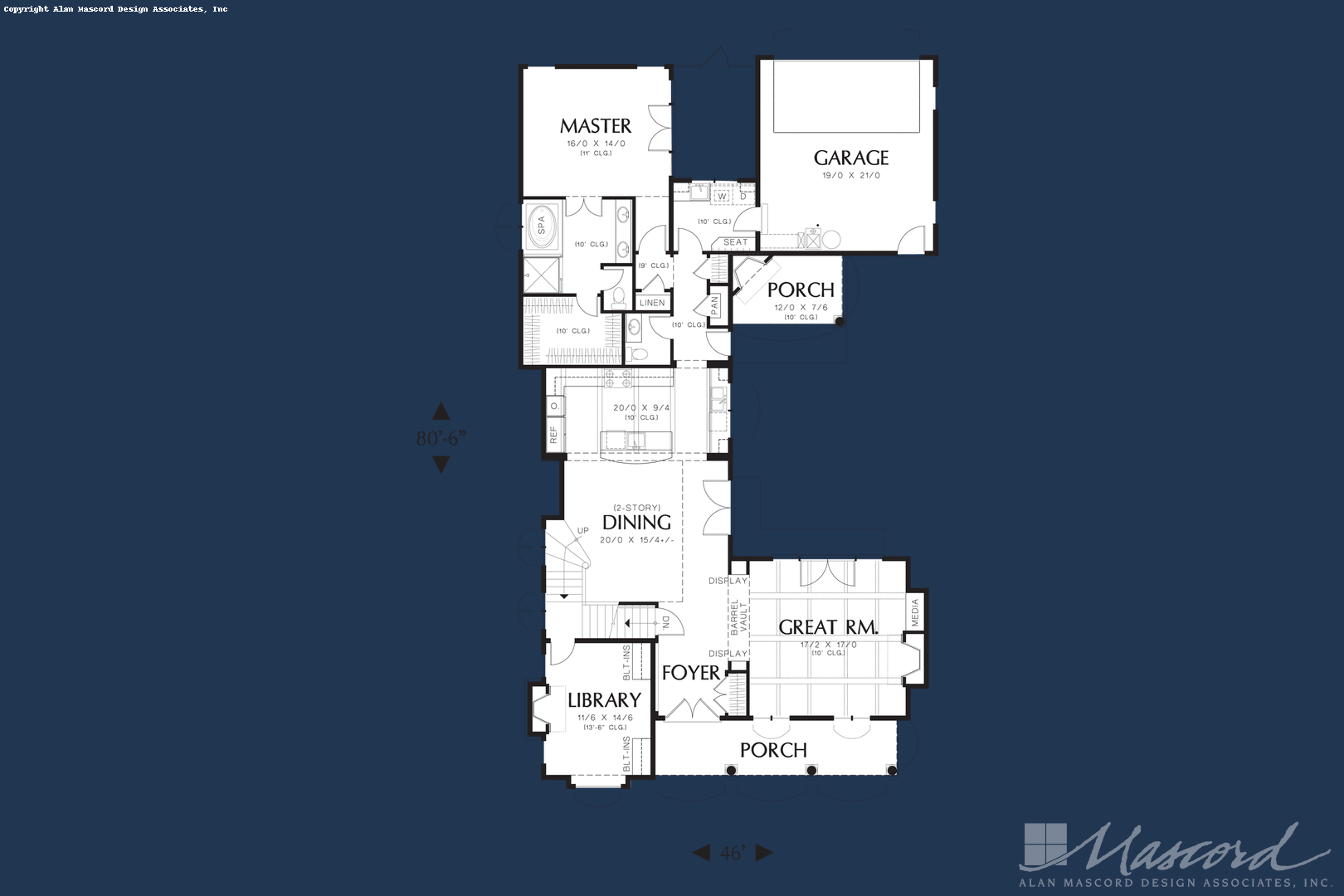

Main Floor Plan

Main Floor Plan image for Mascord Isabella-Mediterranean Elegance-Main Floor Plan

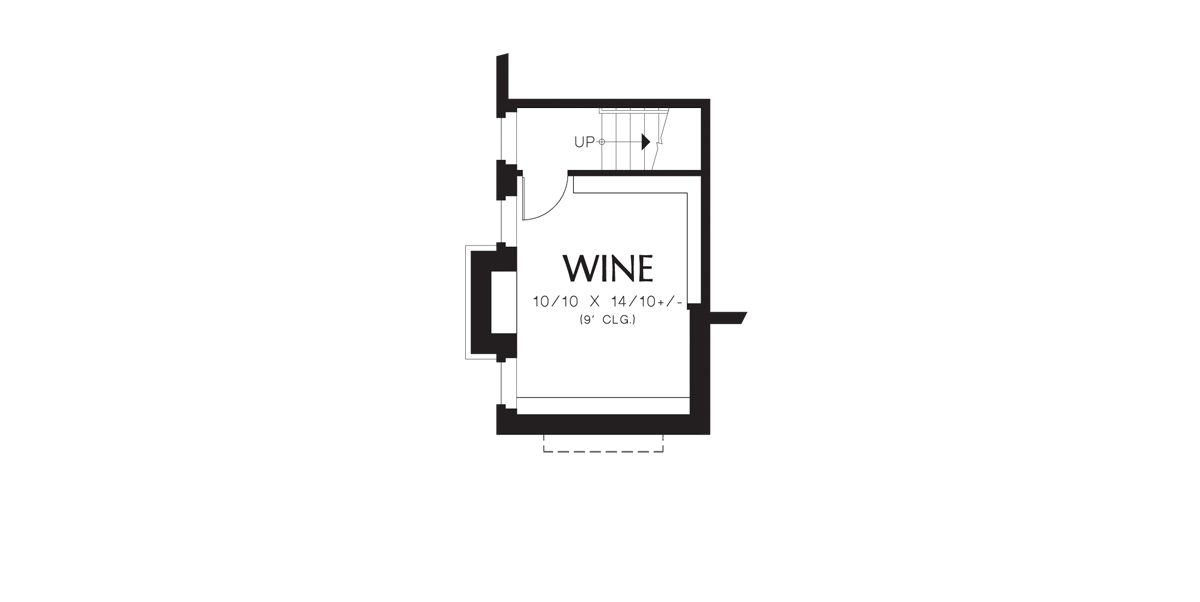

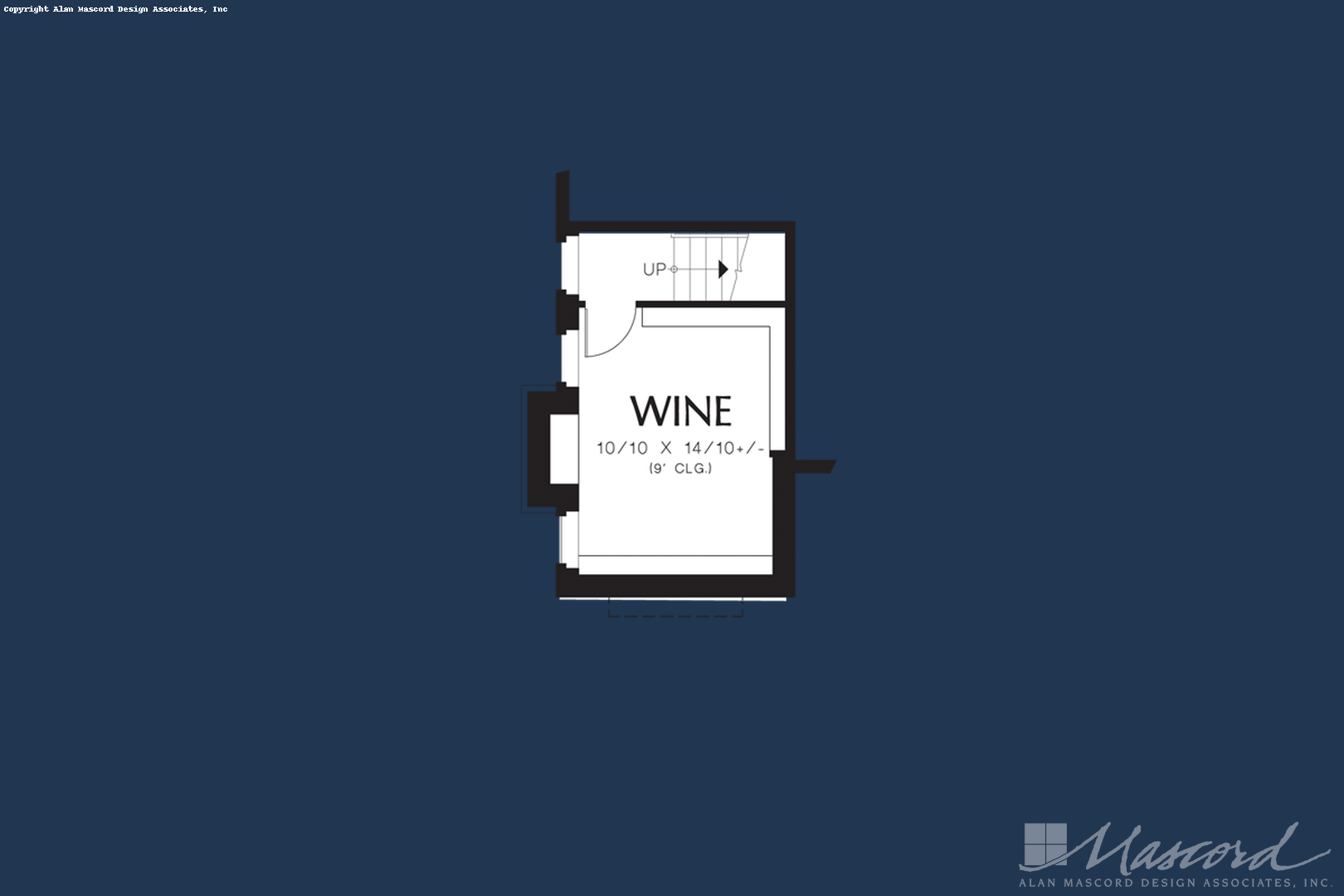

Lower Floor Plan

Lower Floor Plan image for Mascord Isabella-Mediterranean Elegance-Lower Floor Plan

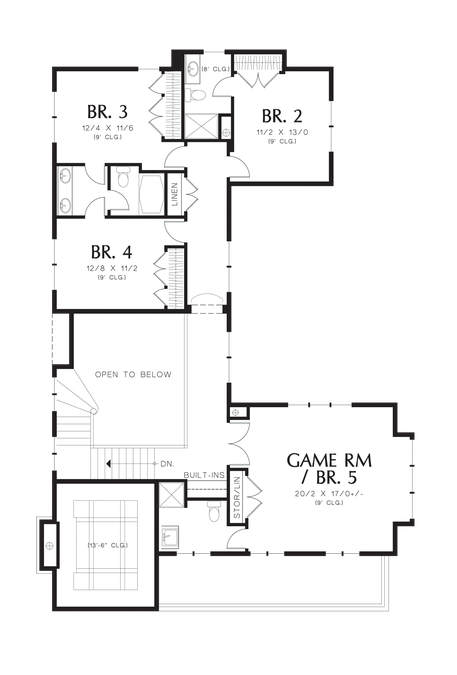

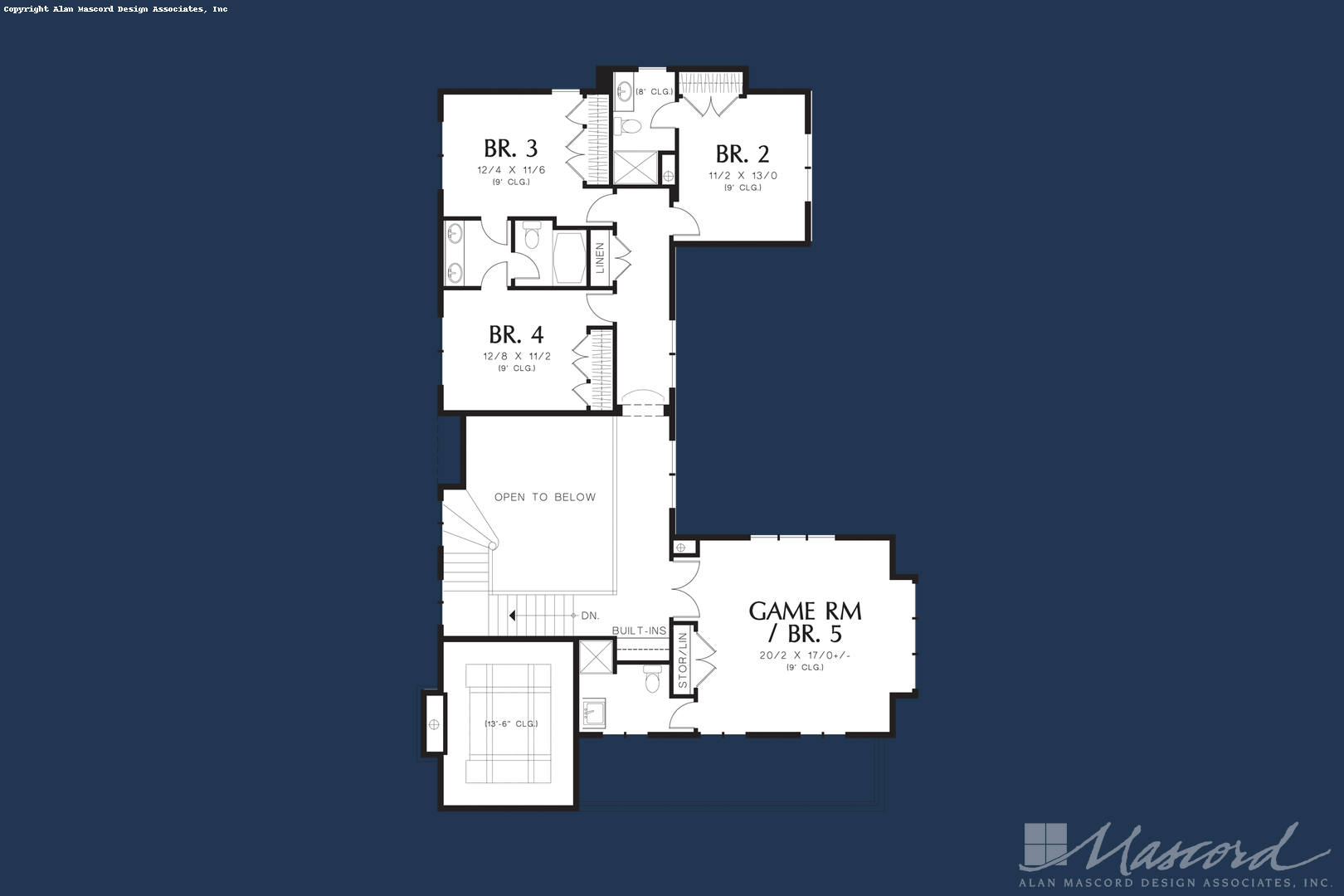

Upper Floor Plan

Upper Floor Plan image for Mascord Isabella-Mediterranean Elegance-Upper Floor Plan

A Walk Through The Isabella

Rolling arches, Spanish-style banisters, and floor-to-ceiling windows recall the elegance of the Mediterranean style. This version suits developments where land is precious and lots are narrow and deep. The front porch and upper balcony soften the two-story exterior, gently ushering traffic into the foyer. To one side, a beautiful arch frames a view of the great room, with its beam ceiling and fireplace. Beyond, the elegant kitchen and a two-story dining room steal the scene. Ceiling beams delineate the kitchen, which includes two sinks and space for a wide refrigerator and a professional range. A lower-level wine cellar aids the entertaining capacity of the kitchen and dining room. The living areas wrap around and open to a side courtyard, which includes an outdoor fireplace. With the addition of a privacy fence, the courtyard will grant privacy and serenity within close-knit urban areas and developments. The master suite is a sanctuary at the rear of the home, connecting to a soothing bath with spa tub, a dual-sink vanity, and a spacious walk-in closet. A wraparound staircase in the dining room leads to the upper-level, which is devoted to three additional bedrooms, a game room, and three baths. Midway up the staircase, nonetheless, is a peaceful reprieve - the library. Its fireplace, arched window, and luxurious built-ins make the space a retreat for children and adults alike.

Plan Details

Heated Space

  • Upper Floor1379 sqft

  • Main Floor1972 sqft

  • Total Area 3351 sqft

Beds and Baths

  • Bedrooms5

  • Full Baths4

  • Half Baths1

  • Floors2

Exterior Dimensions

  • Width46'-0"

  • Depth80'-6"

  • Height (to Midpt)23'-3"

  • Height (to Peak)26'-0"

Garage

  • Garage Bays2 Car Garage

  • Garage Area436 sqft

  • Garage LocationRear

  • Garage OrientationStraight-On

Structure

  • Roof FramingTruss

  • Roof Material Tile Roof

  • Snowload25 lb/sf

  • Wall Framing2 x 6

  • Main Roof Pitch6/12

Order this plan

Construction Plan Set
Foundations(View In-Ground Basement Details)
Additional Options

Subtotal:

$

or call to order

1 (800) 411-0231

Mon-Fri: 8am-5pm PST

High-Res Mktg Images $30

Are you selling a home constructed from these plans? License the renderings and marketing floor plan images for use on MLS, on flyers or on your website. (Note: we don't offer photography licensing)

Modify This Plan

Tell us what you'd like to change, and we will prepare a quote to implement your required changes

What will it cost to build THIS house plan?

Order your custom Cost to Build Report specific to your houseplan and building lot zip code for only $30 today, and develop your construction budget before you build. Powered by StartBuild technology.

Have other questions?

If you can't find the information you need online please contact us

Call: 1 (800) 411-0231
Mon-Fri : 8am - 5pm PST
