Plan 1406 - The Holdsworth - Hillside Craftsman Plan with Vaulted Great Room
Floor Plans

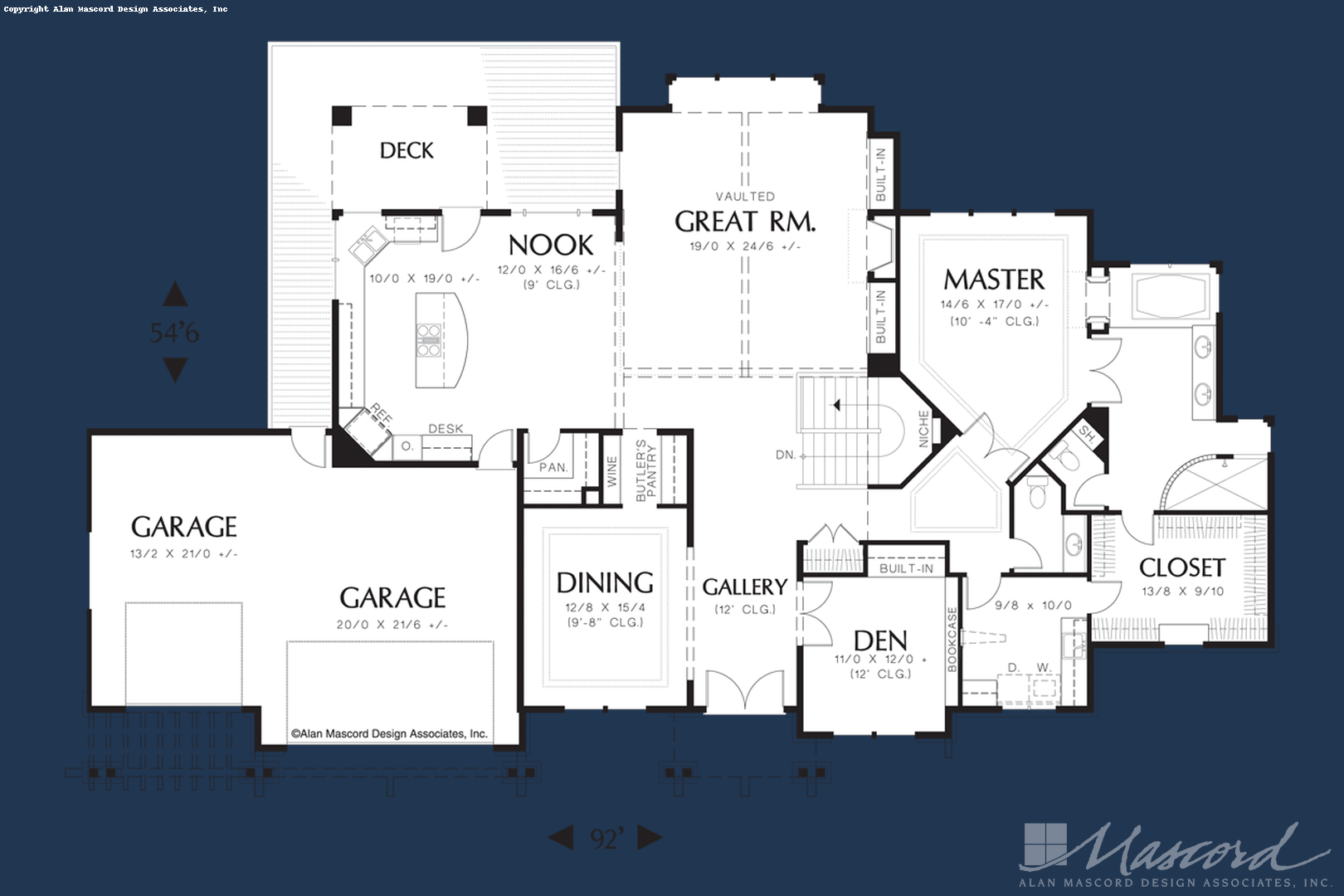

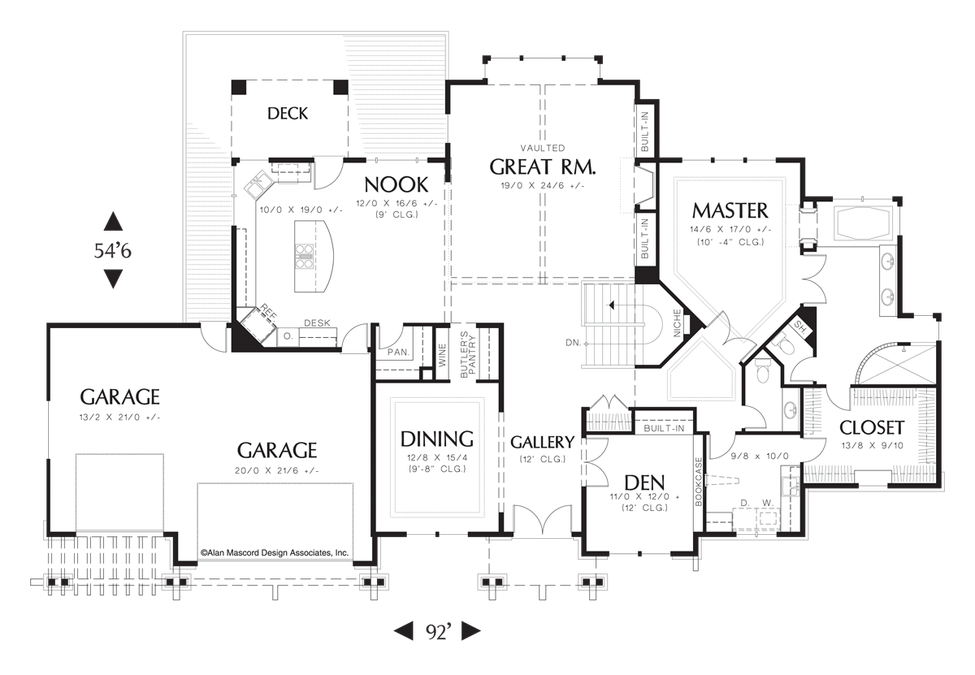

Main Floor Plan

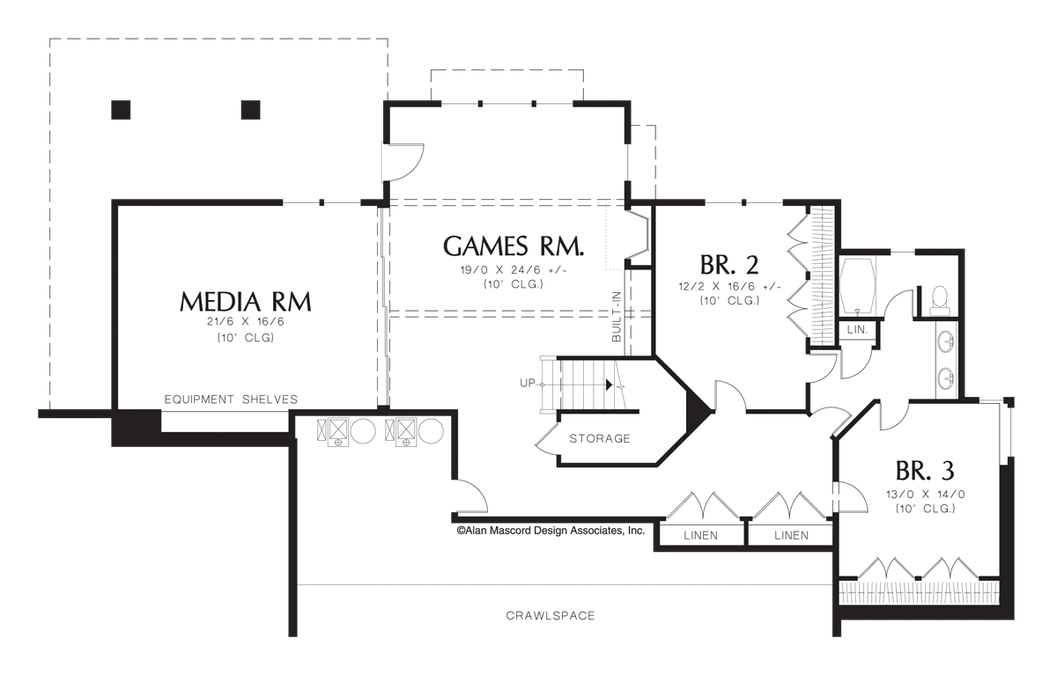

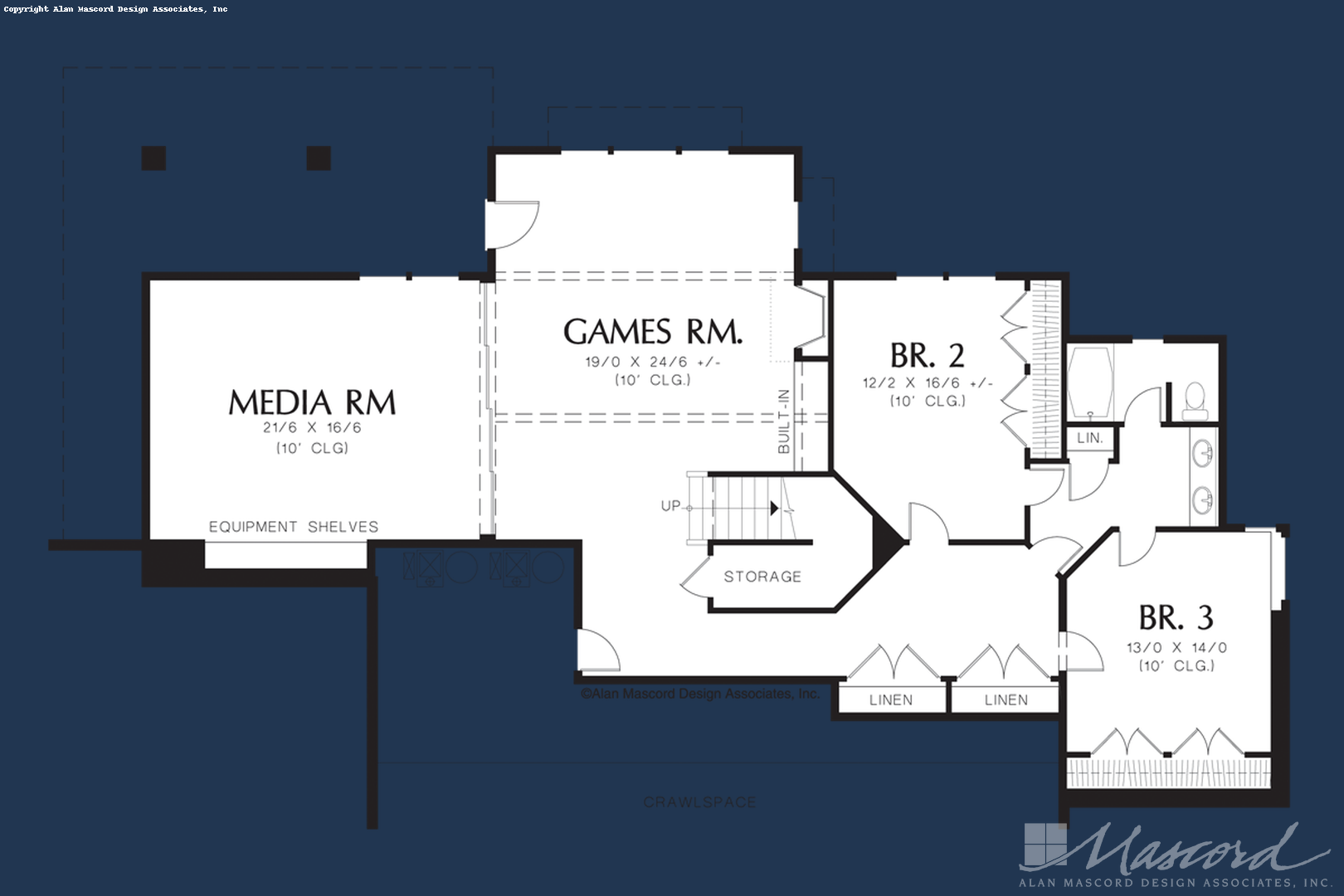

Lower Floor Plan
A Walk Through The Holdsworth

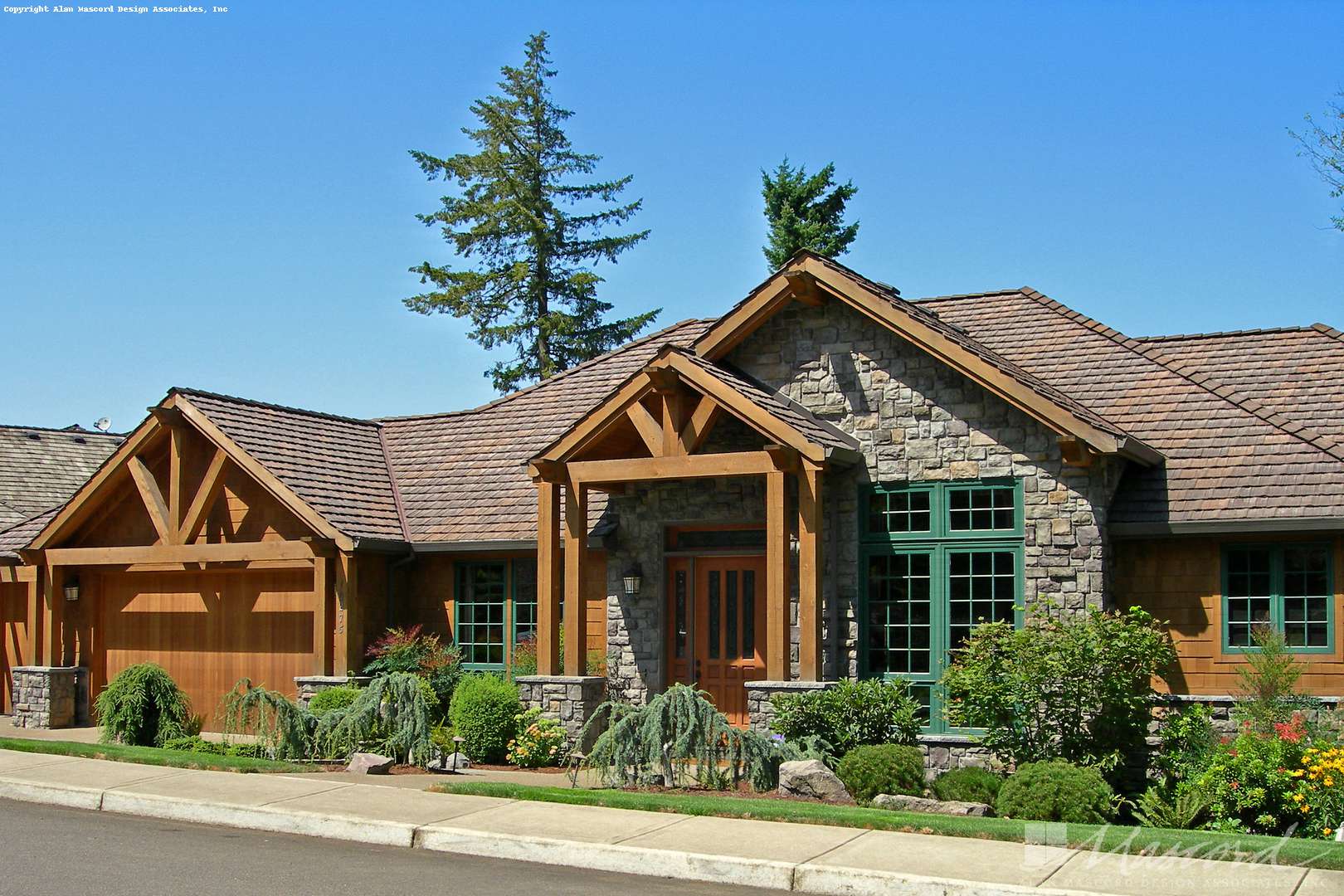

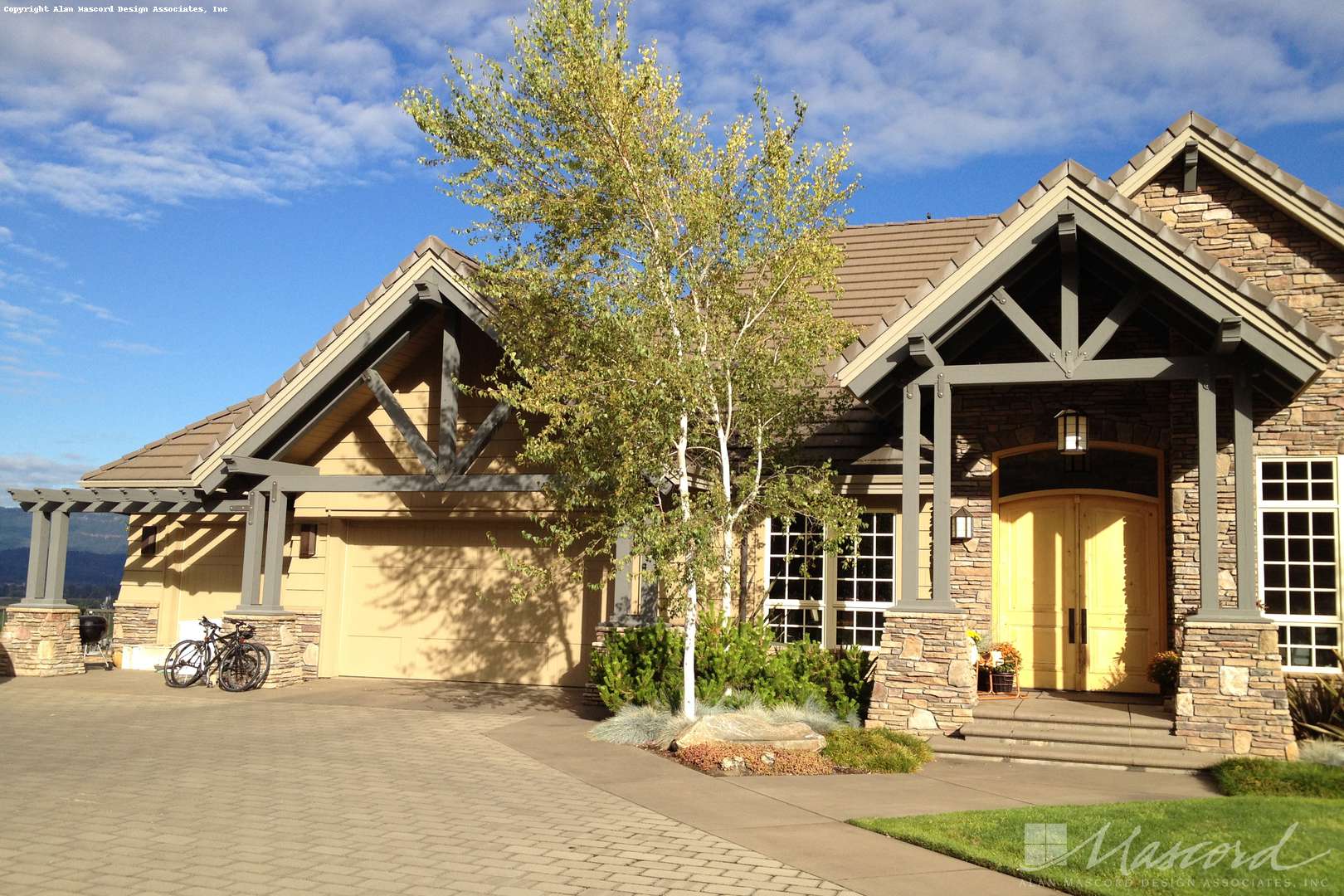

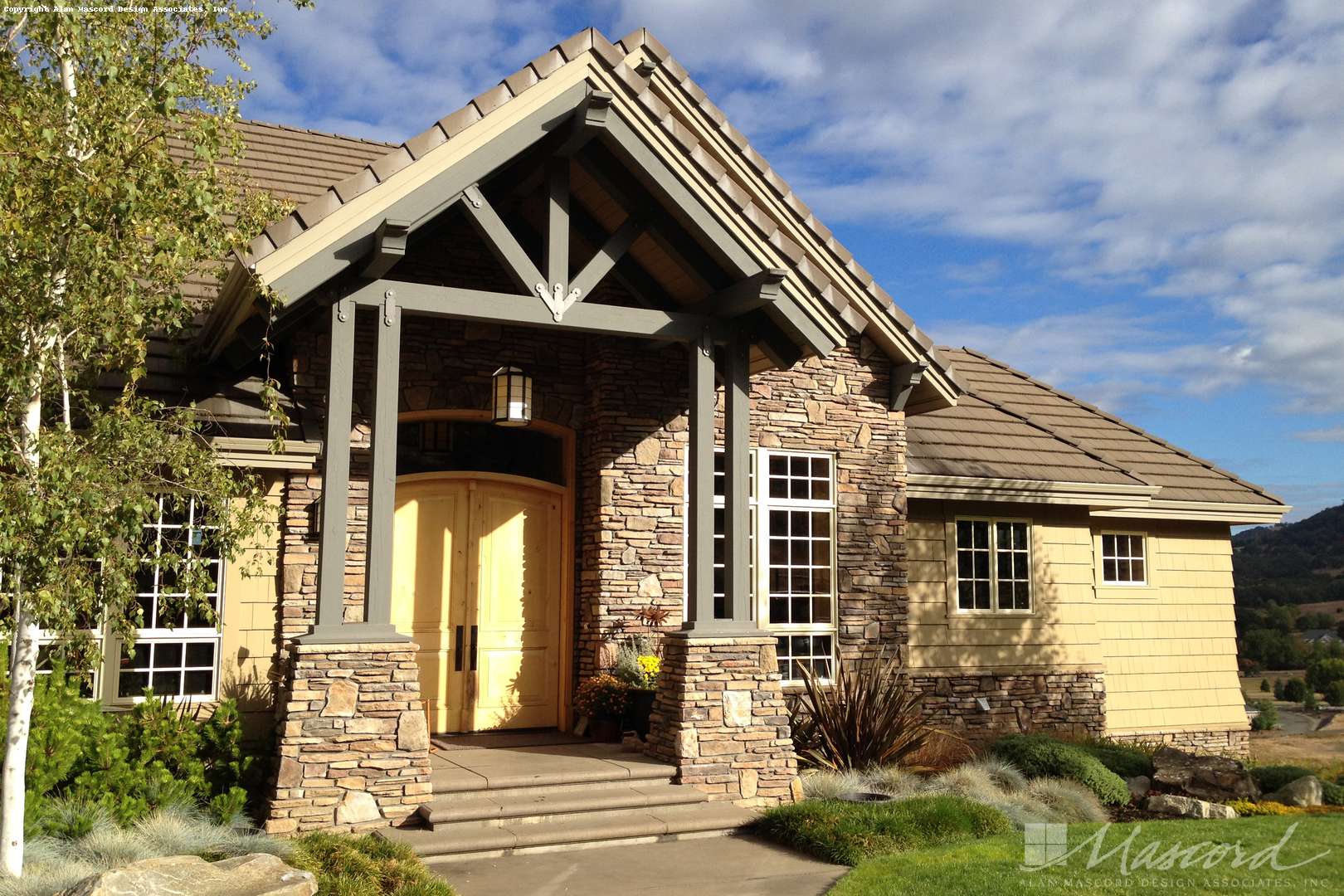

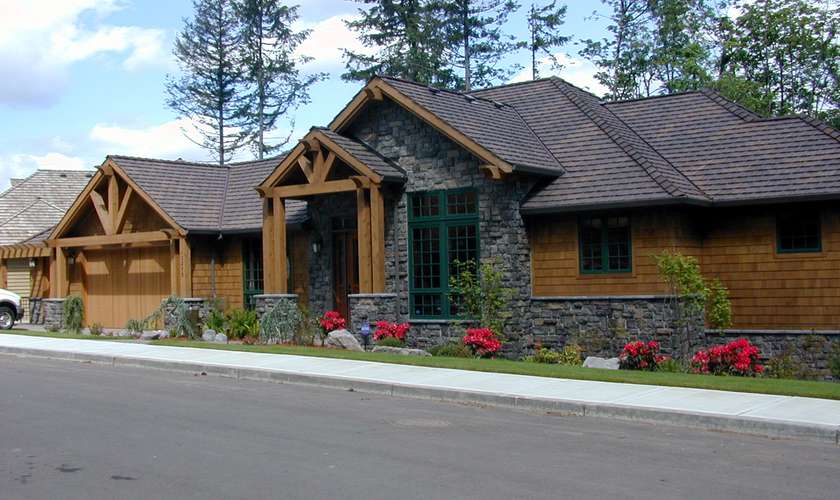

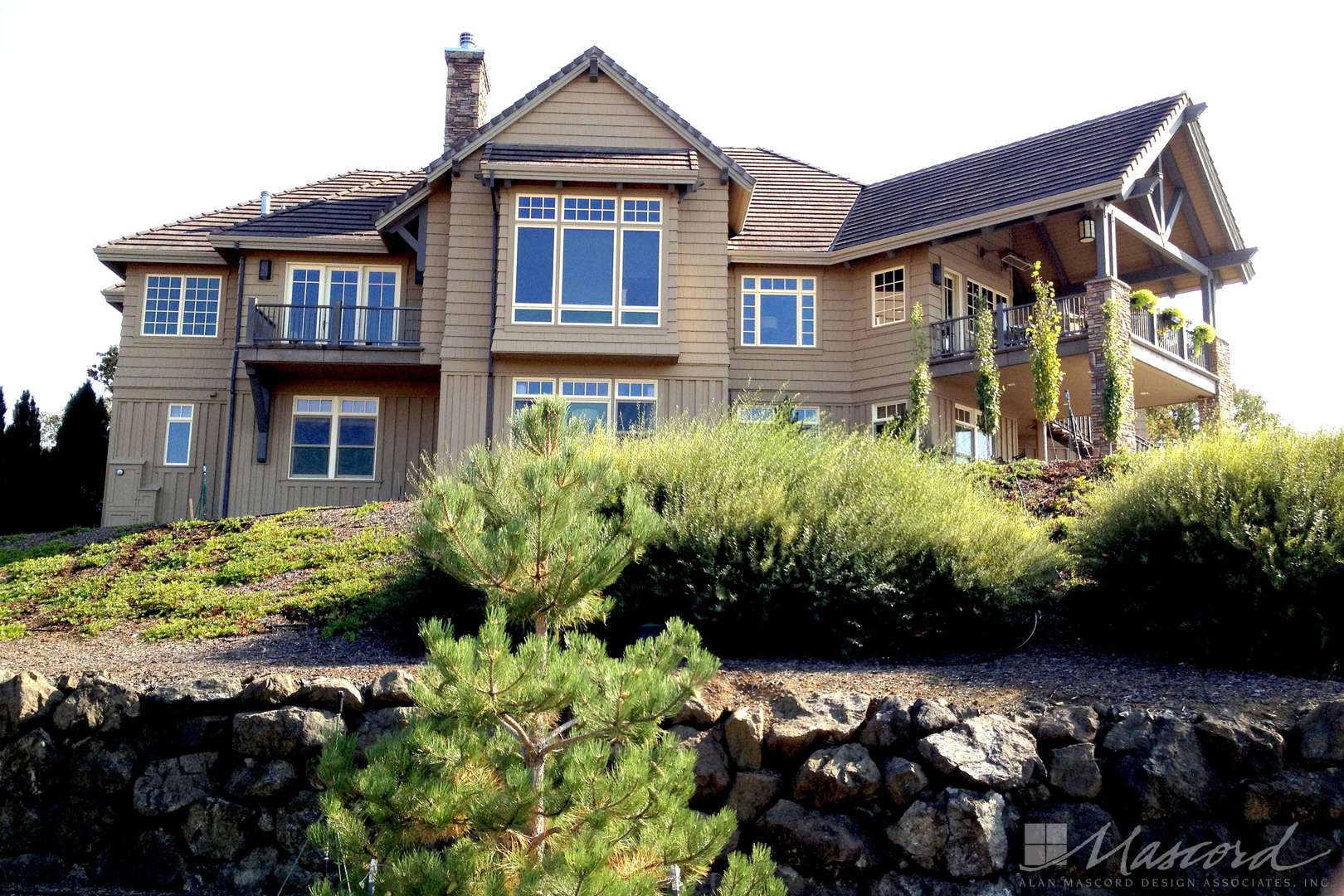

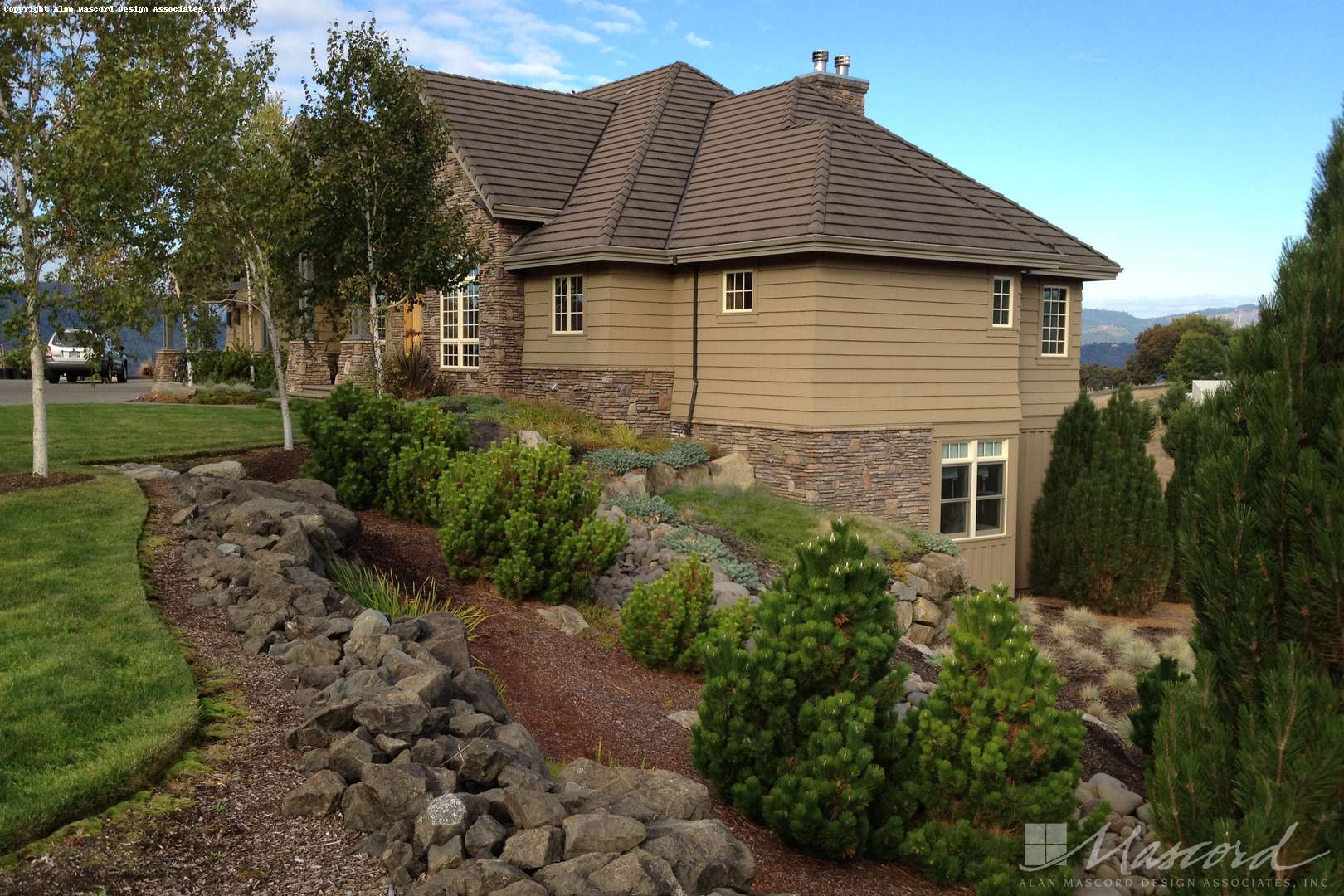

This plan is designed for down sloping lots. Taking a twist on Craftsman detailing, this hillside home is perfect for lots that slope to the back. Stone accents on the facade complement cedar shingle siding; a double door entry features a transom window above. The main level contains open gracious living spaces surrounding a central gallery. A formal dining room is to the left of the gallery and features access to the kitchen through a butler's pantry with a wine rack. A more private den is to the right of the gallery. Built-in shelves and cabinetry make the den very practical. A vaulted great room is at the heart of the home. Its focal points are a fireplace flanked by built-ins and a box window with transoms. An island kitchen and dining nook are nearby, with access to a covered porch and an open deck. A walk-in pantry and a planning desk add convenience to the kitchen. A gallant master suite resides on the main level, as well. Its bath is opulent with a curved walk-in shower, a spa tub and a huge walk-in closet. The laundry room is close by and contains space for the washer and dryer, plus a soaking sink and built-in ironing board. The lower level holds two family bedrooms, sharing a full bath, a games room, with fireplace and patio access, and a media room with built-in equipment shelves.
Plan Details
Heated Space
Main Floor2546 sqft
Basement1889 sqft
Total Area 4435 sqft
Beds and Baths
Bedrooms3
Full Baths2
Half Baths1
Floors1
Exterior Dimensions
Width92'-0"
Depth54'-6"
Height (to Midpt)17'-6"
Height (to Peak)26'-1"
Garage
Garage Bays3 Car Garage
Garage Area755 sqft
Garage LocationFront
Garage OrientationStraight-On
Notable Features
Structure
Roof FramingTruss
Roof Material Shake/Comp Roof
Tile RoofSnowload25 lb/sf
Wall Framing2 x 6
Main Roof Pitch10/12
